Tubular Solenoids


Download in PDF | Contact Us | Main Catalog

All data on solenoids in this section is based on using D.C. voltages. A.C. voltages may be first rectified using full wave bridge rectifiers and then be used with D.C. solenoids.

While viewing any specification page, in order to switch between electrical and mechanical information pages, click the button on top left corner: More data on this solenoid

Solenoid Search

S-63-38
Pull Type

0.38" DIA X 0.66" L
(9.6 mm X 16.7 mm)


Tubular Solenoid S-63-38

S-63-38-H
Push Type

0.38" DIA X 0.66" L
(9.6 mm X 16.7 mm)


Tubular Solenoid S-63-38-H

S-69-38
Pull Type

0.38" DIA X 0.69" L
(9.6 mm X 17.5 mm)


Tubular Solenoid S-69-38

S-69-38-H
Push Type

0.38" DIA X 0.69" L
(9.6 mm X 17.5 mm)


Tubular Solenoid S-69-38-H

S-10-38
Pull Type

0.38" DIA X 1.00" L
(9.6 mm X 25.4 mm)


Tubular Solenoid S-10-38

S-10-38-H
Push Type

0.38" DIA X 1.00" L
(9.6 mm X 25.4 mm)


Tubular Solenoid S-10-38-H

S-10-50
Pull Type

0.50" DIA X 1.00" L
(12.7 mm X 25.4 mm)


Tubular Solenoid S-10-50

S-10-50-H
Push Type

0.50" DIA X 1.00" L
(12.7 mm X 25.4 mm)


Tubular Solenoid S-10-50-H

S-16-50
Pull Type

0.50" DIA X 1.63" L
(12.7 mm X 41.4 mm)


Tubular Solenoid S-16-50

S-16-50-H
Push Type

0.50" DIA X 1.63" L
(12.7 mm X 41.4 mm)


Tubular Solenoid S-16-50-H

S-15-50-A
Pull Type

0.50" DIA X 1.60" L
(12.7 mm X 40.6 mm)


Tubular Solenoid S-15-50-A

S-15-75
Pull Type

0.75" DIA X 1.50" L
(19.1 mm X 38.1 mm)

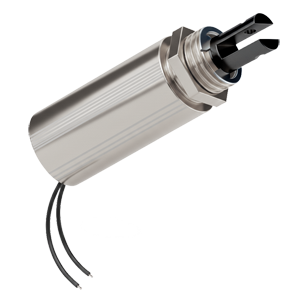

Tubular Solenoid S-15-75

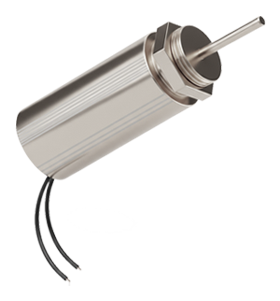

S-15-75-H
Push Type

0.75" DIA X 1.50" L
(19.1 mm X 38.1 mm)


Tubular Solenoid S-15-75-H

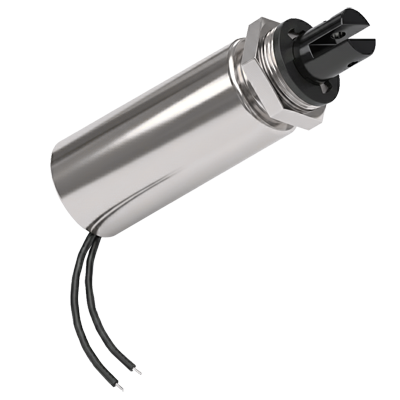

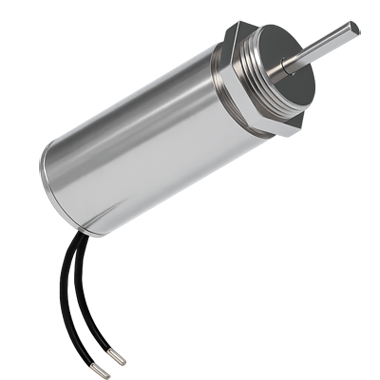

S-20-90
Pull Type

0.90" DIA X 2.00" L
(23.0 mm X 50.8 mm)


Tubular Solenoid S-20-90

S-20-90-H
Push Type

0.90" DIA X 2.00" L
(23.0 mm X 50.8 mm)


Tubular Solenoid S-20-90-H

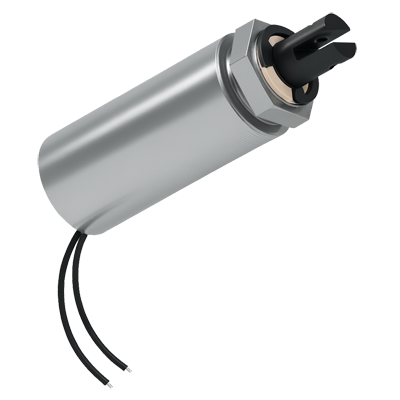

S-20-100
Pull Type

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)


Tubular Solenoid S-20-100

S-20-100-X
Pull Type

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)

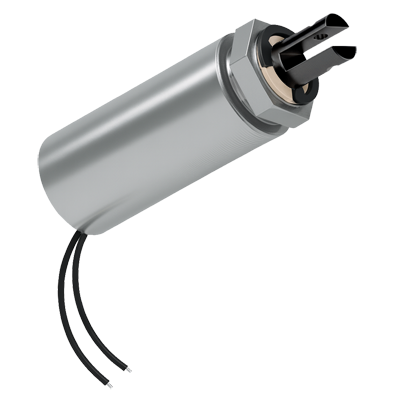

Tubular Solenoid S-20-100-X

S-20-100-H
Push Type

1.00" DIA X 2.00" L
(25.4 mm X 50.8 mm)

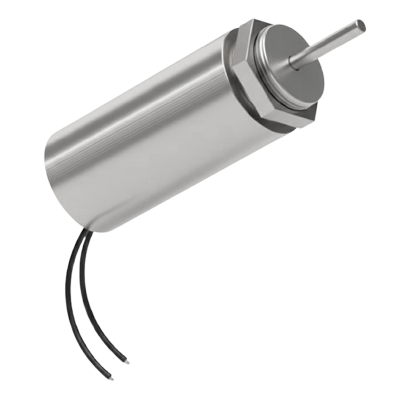

Tubular Solenoid S-20-100-H

S-20-125
Pull Type

1.25" DIA X 2.00" L
(31.8 mm X 50.8 mm)

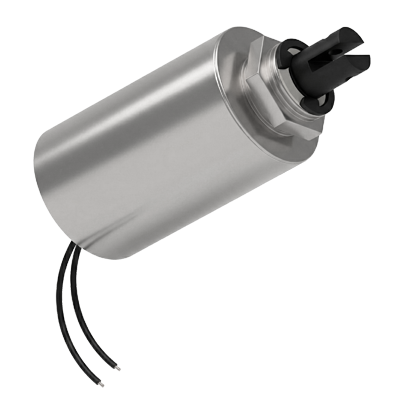

Tubular Solenoid S-20-125

S-20-125-H
Push Type

1.25" DIA X 2.00" L
(31.8 mm X 50.8 mm)

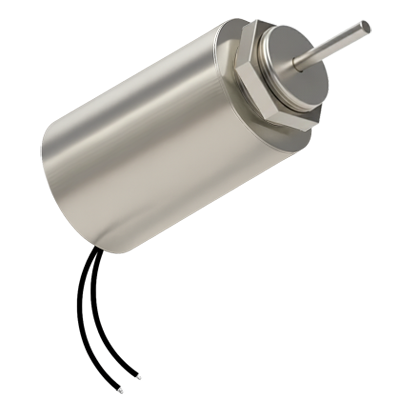

Tubular Solenoid S-20-125-H

S-25-125
Pull Type

1.25" DIA X 2.50" L
(31.8 mm X 63.5 mm)

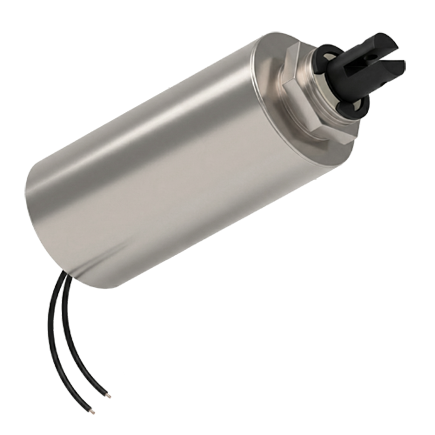

Tubular Solenoid S-25-125

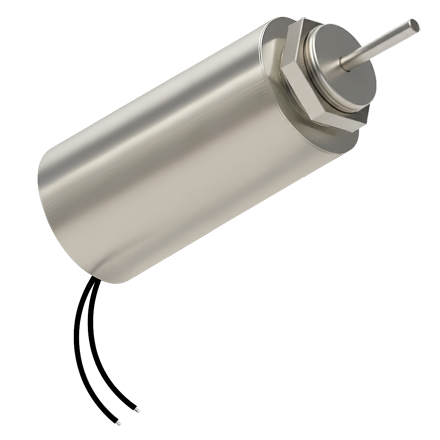

S-25-125-H
Push Type

1.25" DIA X 2.50" L
(31.8 mm X 63.5 mm)


Tubular Solenoid S-25-125-H

S-22-150
Pull Type

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)

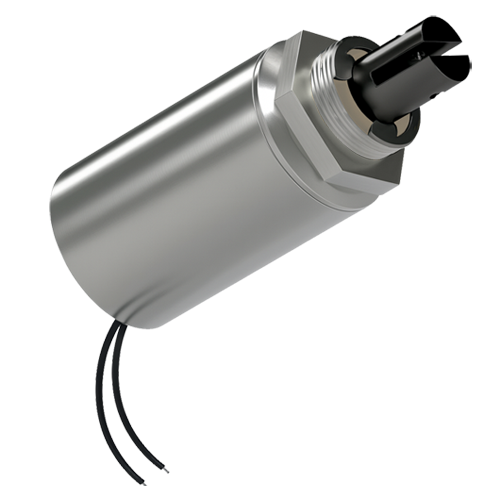

Tubular Solenoid S-22-150

S-22-150-H
Push Type

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)


Tubular Solenoid S-22-150-H

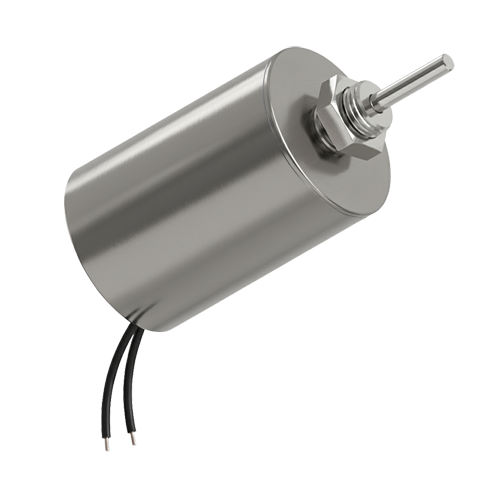

S-22-150-HF
Push Type

1.50" DIA X 2.19" L
(38.1 mm X 55.6 mm)


Tubular Solenoid S-22-150-HF

S-29-150
Pull Type

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)

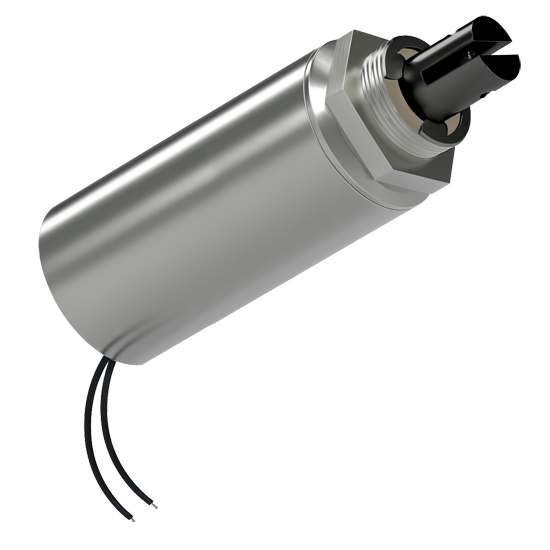

Tubular Solenoid S-29-150

S-29-150-H
Push Type

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)

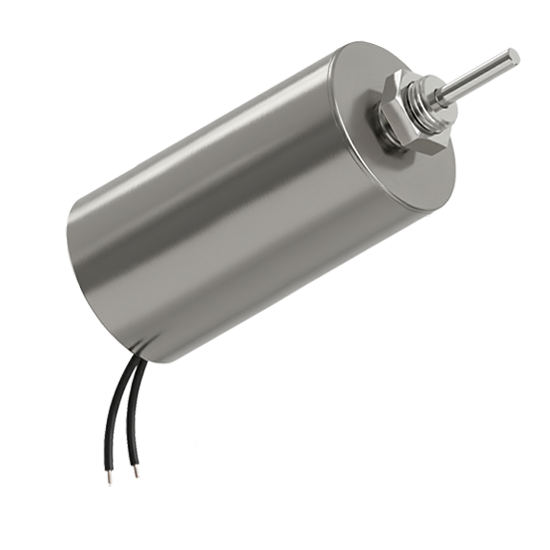

Tubular Solenoid S-29-150-H

S-29-150-HF
Push Type

1.50" DIA X 2.85" L
(38.1 mm X 72.4 mm)


Tubular Solenoid S-29-150-HF

S-22-200
Pull Type

2.00" DIA X 2.19" L
(50.8 mm X 55.6 mm)

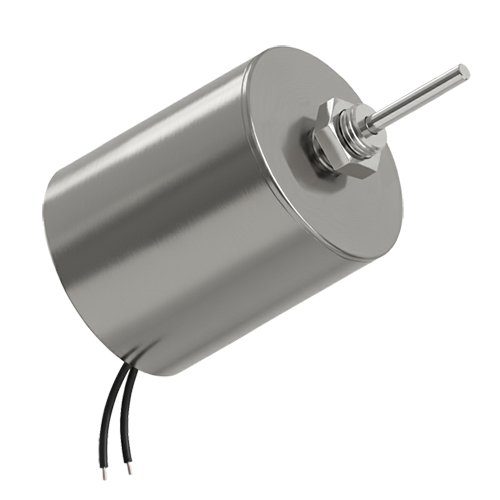

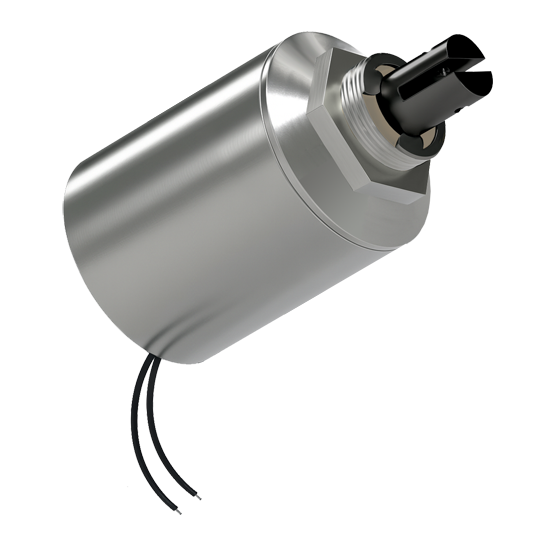

Tubular Solenoid S-22-200

S-22-200-H
Push Type

2.00" DIA X 2.19" L
(50.8 mm X 55.6 mm)


Tubular Solenoid S-22-200-H

S-29-200
Pull Type

2.00" DIA X 2.85" L
(50.8 mm X 72.4 mm)

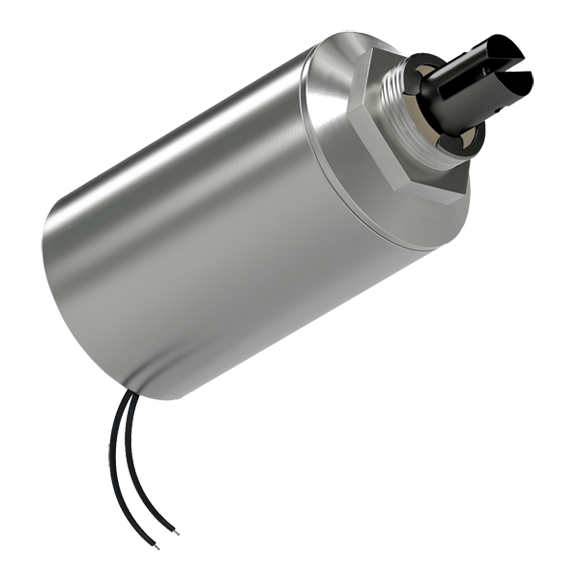

Tubular Solenoid S-29-200

S-29-200-H
Push Type

2.00" DIA X 2.85" L
(50.8 mm X 72.4 mm)

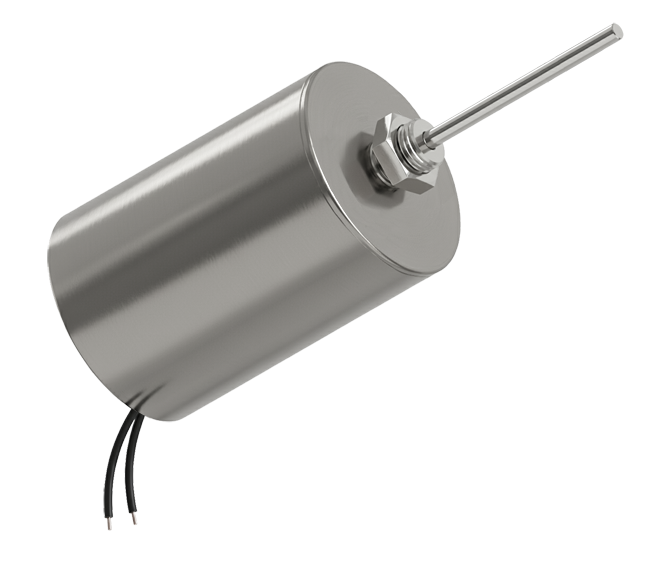

Tubular Solenoid S-29-200-H

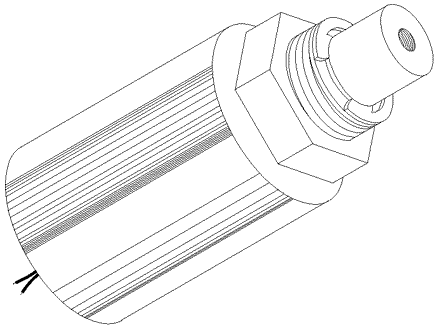

S-41-300
Pull Type

3.00" DIA X 4.13" L
(76.2 mm X 104.9 mm)

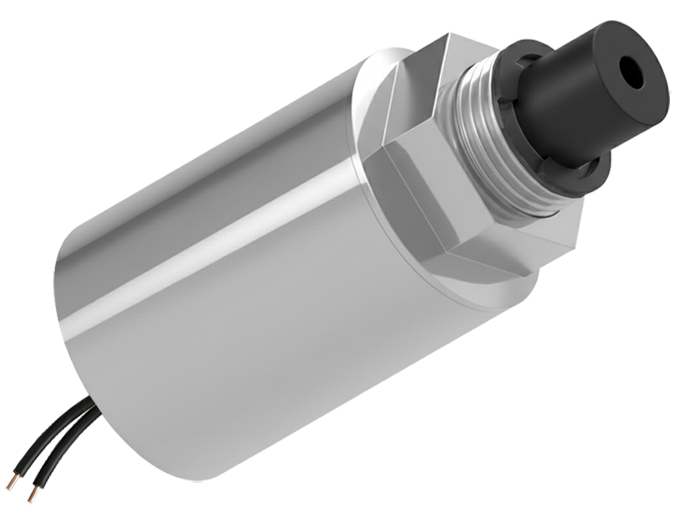

Tubular Solenoid S-41-300

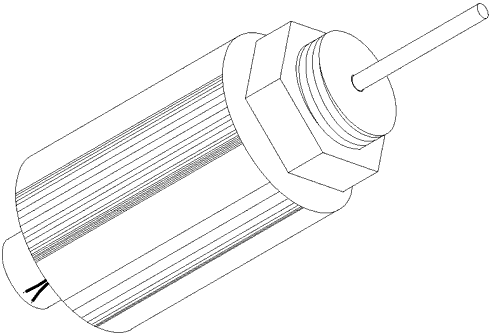

S-41-300-H
Push Type

3.00" DIA X 4.13" L
(76.2 mm X 104.9 mm)

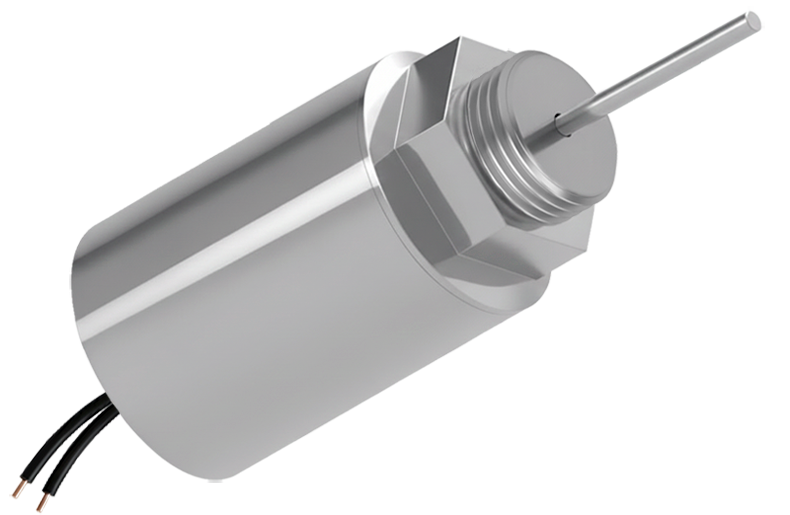

Tubular Solenoid S-41-300-H

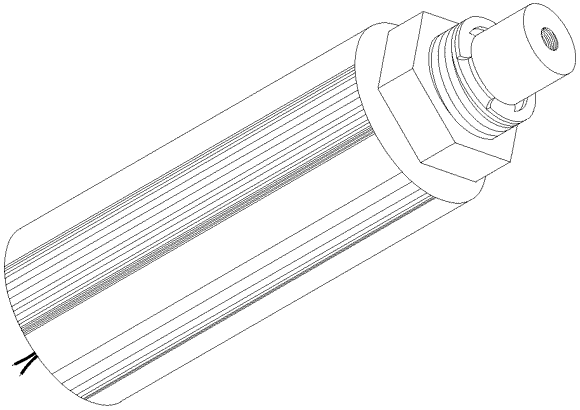

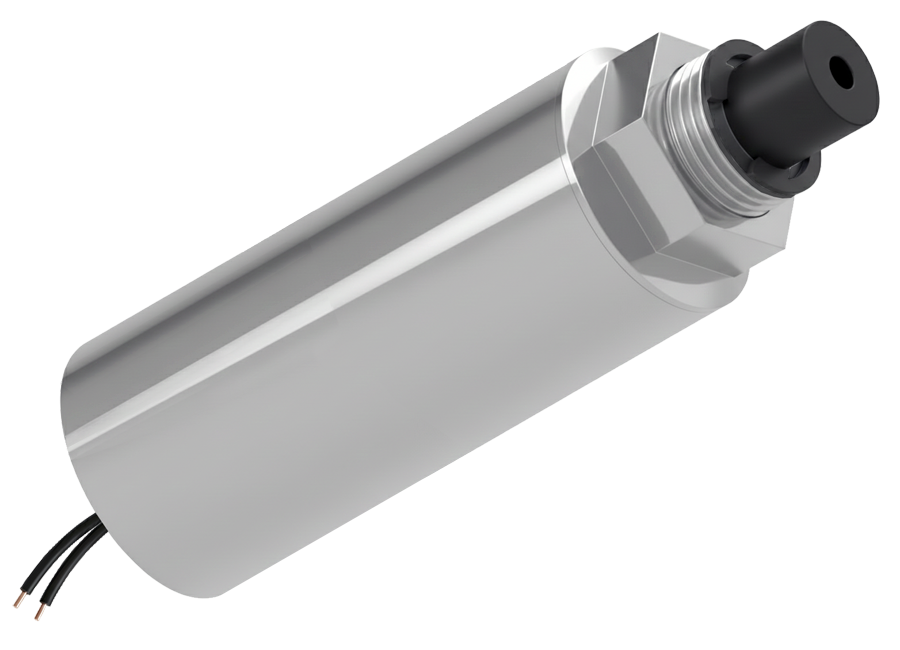

S-70-300
Pull Type

3.00" DIA X 7.00" L
(76.2 mm X 177.8 mm)


Tubular Solenoid S-70-300

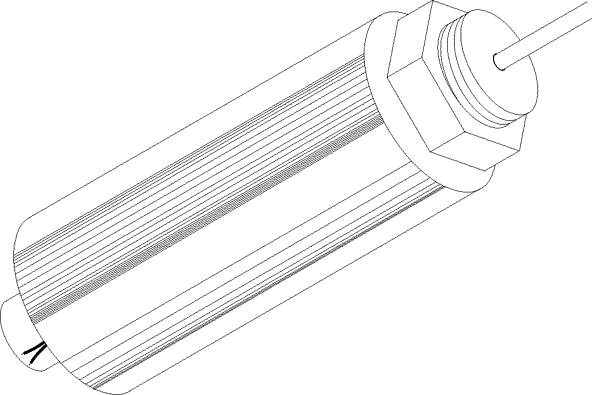

S-70-300-H
Push Type

3.00" DIA X 7.00" L
(76.2 mm X 177.8 mm)

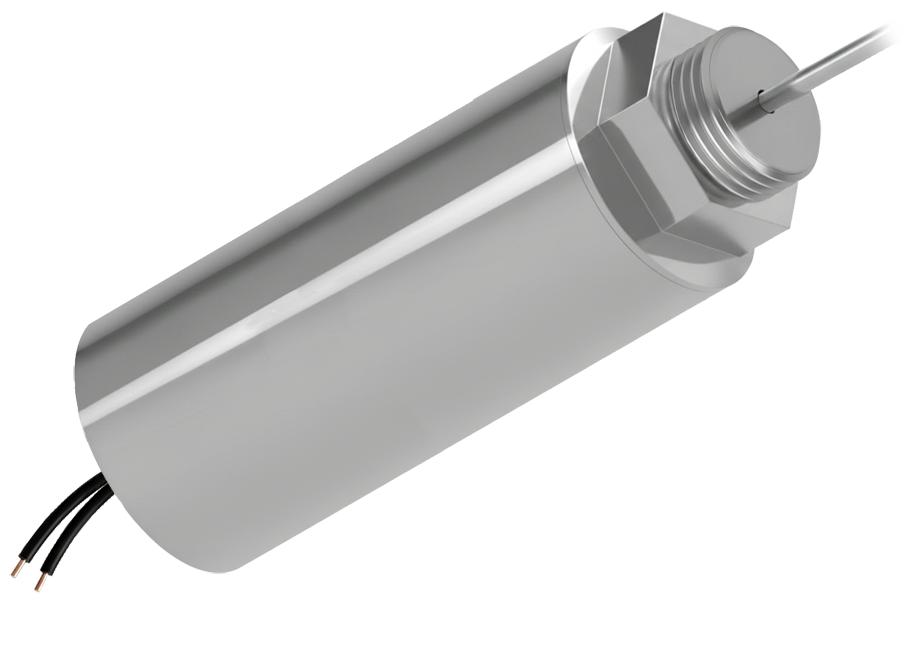

Tubular Solenoid S-70-300-H
