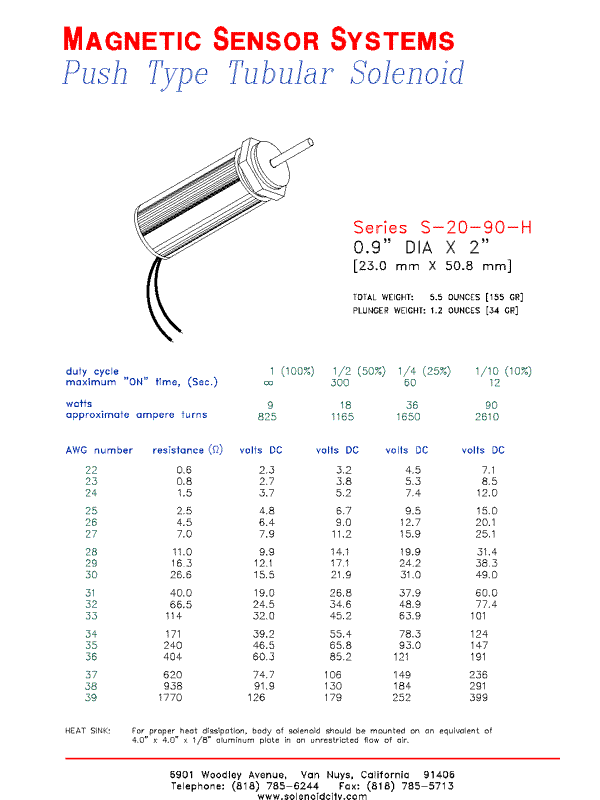

Magnetic Sensor Systems

Push Type Tubular Solenoid

Series S-20-90-H

0.90" DIA X 2.00"

[23.0 mm DIA X 50.8 mm]

TOTAL WEIGHT: 5.5 OUNCES [155 GR]

PLUNGER WEIGHT: 1.2 OUNCES [34 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	300	60	12
watts	9	18	36	90
approximate ampere turns	825	1165	1650	2610

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
22	0.6	2.3	3.2	4.5	7.1
23	0.8	2.7	3.8	5.3	8.5
24	1.5	3.7	5.2	7.4	12.0
25	2.5	4.8	6.7	9.5	15.0
26	4.5	6.4	9.0	12.7	20.1
27	7.0	7.9	11.2	15.9	25.1
28	11.0	9.9	14.1	19.9	31.4
29	16.3	12.1	17.1	24.2	38.3
30	26.6	15.5	21.9	31.0	49.0
31	40.0	19.0	26.8	37.9	60.0
32	66.5	24.5	34.6	48.9	77.4
33	114	32.0	45.2	63.9	101
34	171	39.2	55.4	78.3	124
35	240	46.5	65.8	93.0	147
36	404	60.3	85.2	121	191
37	620	74.7	106	149	236
38	938	91.9	130	184	291
39	1770	126	179	252	399

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 4.0" x 4.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Push Type Solenoid S-20-90-H Page 1 Made in USA

Push Type Tubular Solenoid

22

0.6

2.3

3.2

4.5

7.1

23

0.8

2.7

3.8

5.3

8.5

24

1.5

3.7

5.2

7.4

12.0

25

2.5

4.8

6.7

9.5

15.0

26

4.5

6.4

9.0

12.7

20.1

27

7.0

7.9

11.2

15.9

25.1

28

11.0

9.9

14.1

19.9

31.4

29

16.3

12.1

17.1

24.2

38.3

30

26.6

15.5

21.9

31.0

49.0

31

40.0

19.0

26.8

37.9

60.0

32

66.5

24.5

34.6

48.9

77.4

33

114

32.0

45.2

63.9

101

34

171

39.2

55.4

78.3

124
