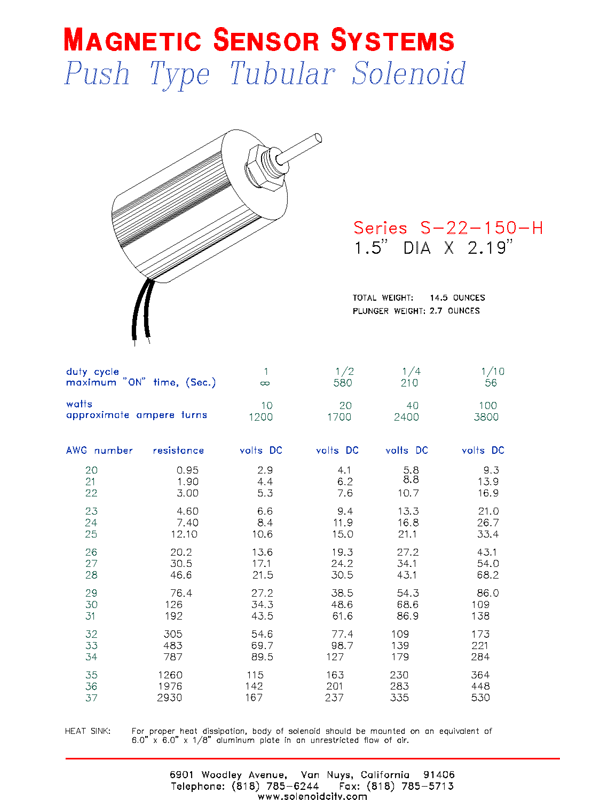

Magnetic Sensor Systems

Push Type Tubular Solenoid

Series S-22-150-H

1.50" DIA X 2.19"

[38.1 mm DIA X 55.6 mm]

TOTAL WEIGHT: 14.5 OUNCES [411 GR]

PLUNGER WEIGHT: 2.7 OUNCES [77 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	580	210	56
watts	10	20	40	100
approximate ampere turns	1200	1700	2400	3800

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	0.95	2.9	4.1	5.8	9.3
21	1.9	4.4	6.2	8.8	13.9
22	3.0	5.3	7.6	10.7	16.9
23	4.6	6.6	9.4	13.3	21.0
24	7.4	8.4	11.9	16.8	26.7
25	12.1	10.6	15.0	21.1	33.4
26	20.2	13.6	19.3	27.2	43.1
27	30.5	17.1	24.2	34.1	54.0
28	46.6	21.5	30.5	43.1	68.2
29	76.4	27.2	38.5	54.3	86.0
30	126	34.3	48.6	68.6	109
31	192	43.5	61.6	86.9	138
32	305	54.6	77.4	109	173
33	483	69.7	98.7	139	221
34	787	89.5	127	179	284
35	1260	115	163	230	364
36	1976	142	201	283	448
37	2930	167	237	335	530

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Push Type Solenoid S-22-150-H Page 1 Made in USA

Push Type Tubular Solenoid

20

0.95

2.9

4.1

5.8

9.3

21

1.9

4.4

6.2

8.8

13.9

22

3.0

5.3

7.6

10.7

16.9

23

4.6

6.6

9.4

13.3

21.0

24

7.4

8.4

11.9

16.8

26.7

25

12.1

10.6

15.0

21.1

33.4

26

20.2

13.6

19.3

27.2

43.1

27

30.5

17.1

24.2

34.1

54.0

28

46.6

21.5

30.5

43.1

68.2

29

76.4

27.2

38.5

54.3

86.0

30

126

34.3

48.6

68.6

109

31

192

43.5

61.6

86.9

138

32

305

54.6

77.4

109

173
