Magnetic Sensor Systems

Pull Type Tubular Solenoid

Series S-10-38

0.375" DIA X 1.00"

[9.7 mm DIA X 25.4 mm]

TOTAL WEIGHT: 0.44 OUNCES [12.5 GR]

PLUNGER WEIGHT: 0.10 OUNCES [2.9 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	65	15	4
watts	2	4	8	20
approximate ampere turns	290	410	580	920

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
27	0.62	1.1	1.6	2.2	3.5
28	0.86	1.3	1.8	2.6	4.1
29	1.56	1.8	2.5	3.5	5.6
30	2.54	2.3	3.2	4.5	7.1
31	3.83	2.8	3.9	5.5	8.8
32	6.0	3.5	4.9	6.9	11.0
33	9.8	4.4	6.3	8.9	14.0
34	12.8	5.1	7.2	10.1	16.0
35	22.9	6.8	9.6	13.5	21.4
36	31.0	7.9	11.1	15.7	24.9
37	50.1	10.0	14.2	20.0	31.7
38	78.9	12.6	17.8	25.1	39.7
39	147	17.2	24.3	34.4	54.4
40	256	22.6	32.0	45.2	71.5
41	400	28.3	40.0	56.6	89.4
42	676	36.8	52.0	73.5	116.3

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 2.0" x 2.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

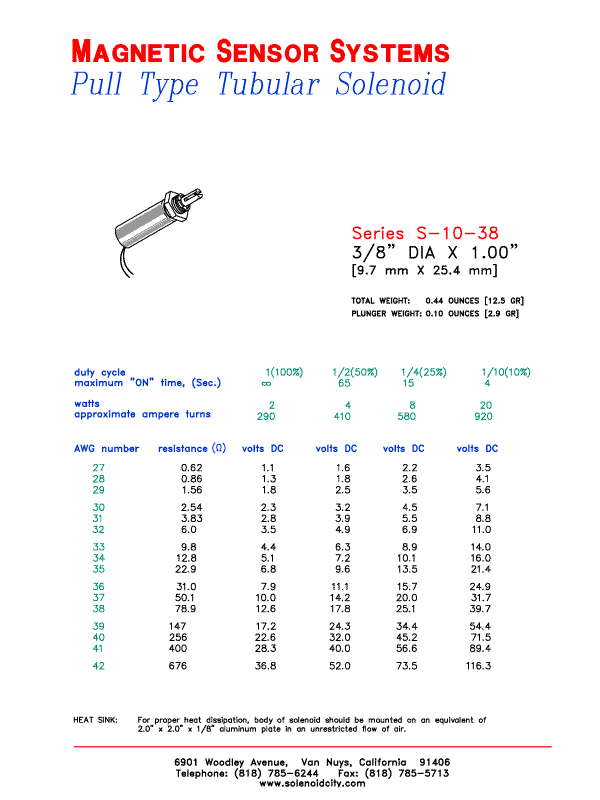

Tubular Pull Type Solenoid S-10-38 Page 1 Made in USA

Pull Type Tubular Solenoid

27

0.62

1.1

1.6

2.2

3.5

28

0.86

1.3

1.8

2.6

4.1

29

1.56

1.8

2.5

3.5

5.6

30

2.54

2.3

3.2

4.5

7.1

31

3.83

2.8

3.9

5.5

8.8

32

6.0

3.5

4.9

6.9

11.0

33

9.8

4.4

6.3

8.9

14.0

34

12.8

5.1

7.2

10.1

16.0

35

22.9

6.8

9.6

13.5

21.4

36

31.0

7.9

11.1

15.7

24.9

37

50.1

10.0

14.2

20.0

31.7

38

78.9

12.6

17.8

25.1

39.7

39

147

17.2

24.3

34.4

54.4
