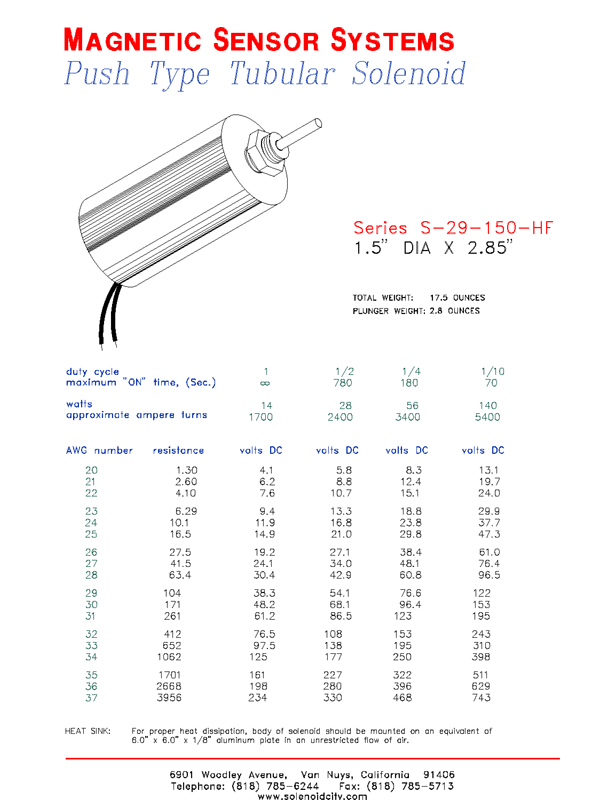

Magnetic Sensor Systems

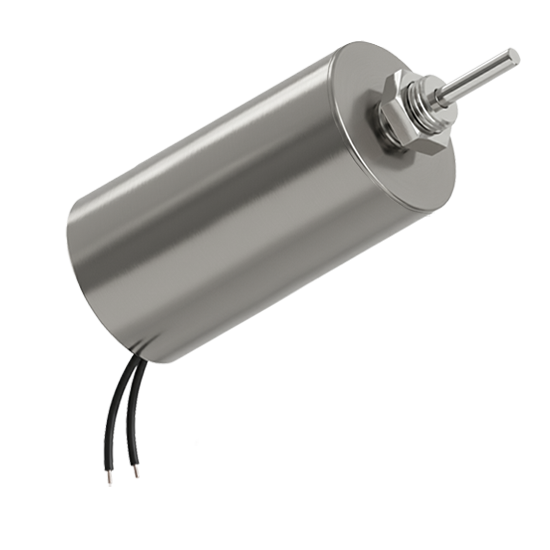

Push Type Tubular Solenoid

Series S-29-150-HF

1.50" DIA X 2.85"

[38.1 mm DIA X 72.4 mm]

TOTAL WEIGHT: 17.5 OUNCES [496 GR]

PLUNGER WEIGHT: 3.5 OUNCES [99 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	780	180	70
watts	14	28	56	140
approximate ampere turns	1700	2400	3400	5400

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	1.30	4.1	5.8	8.3	13.1
21	2.60	6.2	8.8	12.4	19.7
22	4.10	7.6	10.7	15.1	24.0
23	6.29	9.4	13.3	18.8	29.9
24	10.1	11.9	16.8	23.8	37.7
25	16.5	14.9	21.0	29.8	47.3
26	27.5	19.2	27.1	38.4	61.0
27	41.5	24.1	34.0	48.1	76.4
28	63.4	30.4	42.9	60.8	96.5
29	104	38.3	54.1	76.6	122
30	171	48.2	68.1	96.4	153
31	261	61.2	86.5	123	195
32	412	76.5	108	153	243
33	652	97.5	138	195	310
34	1062	125	177	250	398
35	1701	161	227	322	511
36	2668	198	280	396	629
37	3956	234	330	468	743

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Push Type Solenoid S-29-150-HF Page 1 Made in USA
