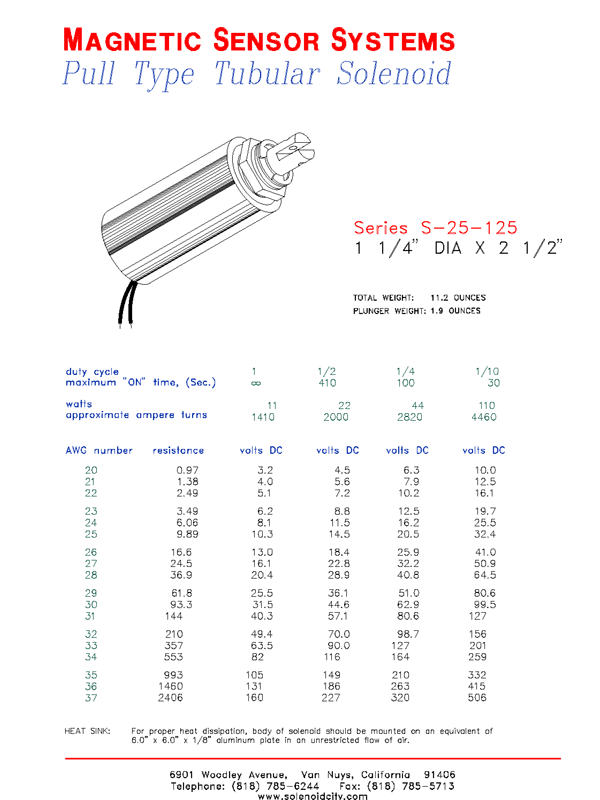

Magnetic Sensor Systems

Pull Type Tubular Solenoid

Series S-25-125

1.25" DIA X 2.50"

[31.8 mm DIA X 63.5 mm]

TOTAL WEIGHT: 11.2 OUNCES [318 GR]

PLUNGER WEIGHT: 1.9 OUNCES [54 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	410	100	30
watts	11	22	44	110
approximate ampere turns	1410	2000	2820	4460

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	0.97	3.2	4.5	6.3	10.0
21	1.38	4.0	5.6	7.9	12.5
22	2.49	5.1	7.2	10.2	16.1
23	3.49	6.2	8.8	12.5	19.7
24	6.06	8.1	11.5	16.2	25.5
25	9.89	10.3	14.5	20.5	32.4
26	16.6	13.0	18.4	25.9	41.0
27	24.5	16.1	22.8	32.2	50.9
28	36.9	20.4	28.9	40.8	64.5
29	61.8	25.5	36.1	51.0	80.6
30	93.3	31.5	44.6	62.9	99.5
31	144	40.3	57.1	80.6	127
32	210	49.4	70.0	98.7	156
33	357	63.5	90.0	127	201
34	553	82.0	116	164	259
35	993	105	149	210	332
36	1460	131	186	263	415
37	2406	160	227	320	506

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Pull Type Solenoid S-25-125 Page 1 Made in USA

Pull Type Tubular Solenoid

20

0.97

3.2

4.5

6.3

10.0

21

1.38

4.0

5.6

7.9

12.5

22

2.49

5.1

7.2

10.2

16.1

23

3.49

6.2

8.8

12.5

19.7

24

6.06

8.1

11.5

16.2

25.5

25

9.89

10.3

14.5

20.5

32.4

26

16.6

13.0

18.4

25.9

41.0

27

24.5

16.1

22.8

32.2

50.9

28

36.9

20.4

28.9

40.8

64.5

29

61.8

25.5

36.1

51.0

80.6

30

93.3

31.5

44.6

62.9

99.5

31

144

40.3

57.1

80.6

127

32

210

49.4

70.0

98.7

156
