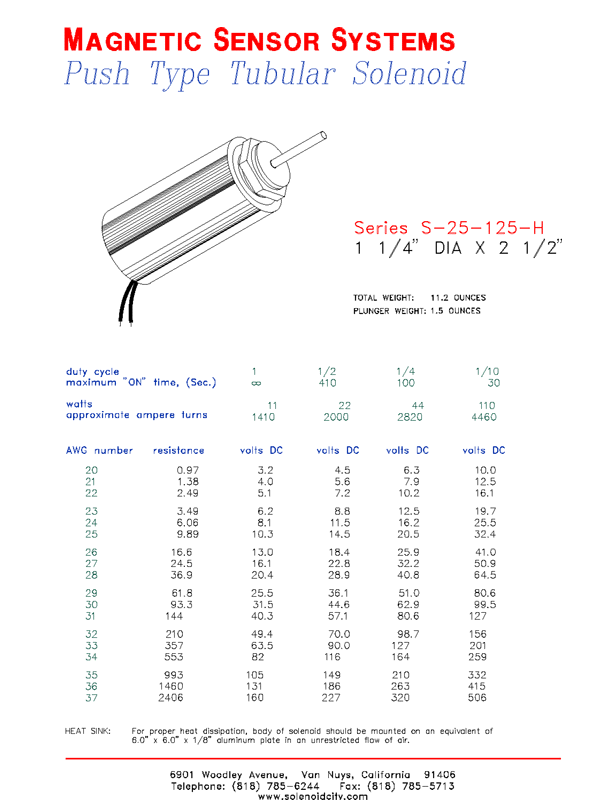

Push Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

410

100

30

watts

11

22

44

110

approximate ampere turns

1410

2000

2820

4460

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

20

0.97

3.2

4.5

6.3

10.0

21

1.38

4.0

5.6

7.9

12.5

22

2.49

5.1

7.2

10.2

16.1

23

3.49

6.2

8.8

12.5

19.7

24

6.06

8.1

11.5

16.2

25.5

25

9.89

10.3

14.5

20.5

32.4

26

16.6

13.0

18.4

25.9

41.0

27

24.5

16.1

22.8

32.2

50.9

28

36.9

20.4

28.9

40.8

64.5

29

61.8

25.5

36.1

51.0

80.6

30

93.3

31.5

44.6

62.9

99.5

31

144

40.3

57.1

80.6

127

32

210

49.4

70.0

98.7

156

33

357

63.5

90.0

127

201

34

553

82.0

116

164

259

35

993

105

149

210

332

36

1460

131

186

263

415

37

2406

160

227

320

506

S-25-125-H Tubular Solenoid Features and Applications

Key Features

1.25 in (31.8 mm) diameter body; 2.50 in (63.5 mm) body length; 11.2 oz (318 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-25-125-H may be considered for indexing pins, ejectors, dispensing mechanisms, automated fixtures, sorting equipment and other short-stroke push-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-25-125-H data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
