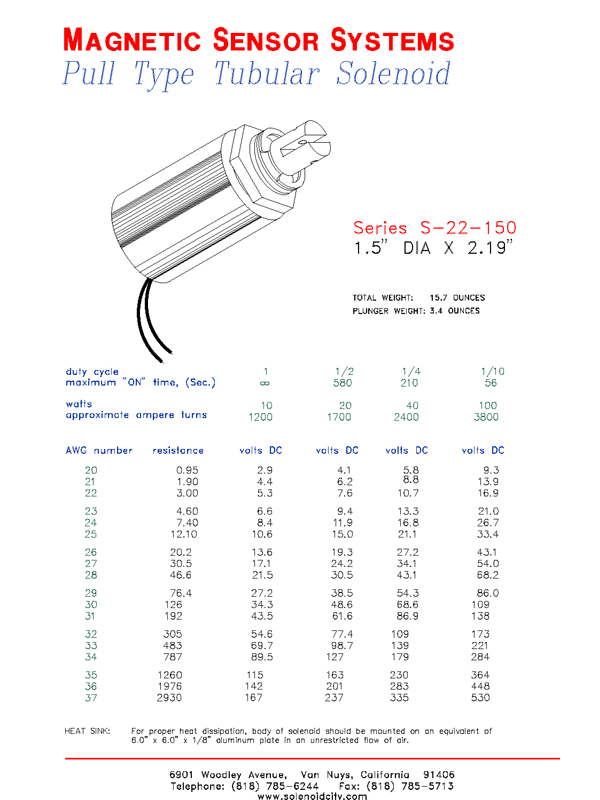

Pull Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

580

210

56

watts

10

20

40

100

approximate ampere turns

1200

1700

2400

3800

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

20

0.95

2.9

4.1

5.8

9.3

21

1.9

4.4

6.2

8.8

13.9

22

3.0

5.3

7.6

10.7

16.9

23

4.6

6.6

9.4

13.3

21.0

24

7.4

8.4

11.9

16.8

26.7

25

12.1

10.6

15.0

21.1

33.4

26

20.2

13.6

19.3

27.2

43.1

27

30.5

17.1

24.2

34.1

54.0

28

46.6

21.5

30.5

43.1

68.2

29

76.4

27.2

38.5

54.3

86.0

30

126

34.3

48.6

68.6

109

31

192

43.5

61.6

86.9

138

32

305

54.6

77.4

109

173

33

483

69.7

98.7

139

221

34

787

89.5

127

179

284

35

1260

115

163

230

364

36

1976

142

201

283

448

37

2930

167

237

335

530

S-22-150 Tubular Solenoid Features and Applications

Key Features

1.50 in (38.1 mm) diameter body; 2.19 in (55.6 mm) body length; 15.7 oz (445 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-22-150 may be considered for latches, release mechanisms, laboratory equipment, dispensing systems, valves and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-22-150 data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
