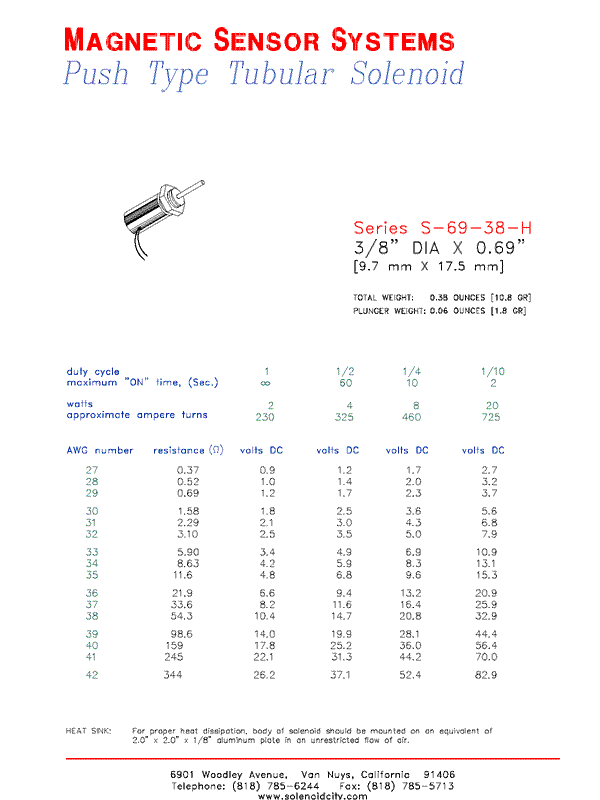

Magnetic Sensor Systems

Push Type Tubular Solenoid

Series S-69-38-H

0.375" DIA X 0.69"

[9.7 mm DIA X 17.5 mm]

TOTAL WEIGHT: 0.38 OUNCES [10.8 GR]

PLUNGER WEIGHT: 0.06 OUNCES [1.8 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	60	10	2
watts	2	4	8	20
approximate ampere turns	230	325	460	725

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
27	0.37	0.9	1.2	1.7	2.7
28	0.52	1.0	1.4	2.0	3.2
29	0.69	1.2	1.7	2.3	3.7
30	1.58	1.8	2.5	3.6	5.6
31	2.29	2.1	3.0	4.3	6.8
32	3.10	2.5	3.5	5.0	7.9
33	5.90	3.4	4.9	6.9	10.9
34	8.63	4.2	5.9	8.3	13.1
35	11.6	4.8	6.8	9.6	15.3
36	21.9	6.6	9.4	13.2	20.9
37	33.6	8.2	11.6	16.4	25.9
38	54.3	10.4	14.7	20.8	32.9
39	98.6	14.0	19.9	28.1	44.4
40	159	17.8	25.2	36.0	56.4
41	245	22.1	31.3	44.2	70.0
42	344	26.2	37.1	52.4	82.9

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 2.0" x 2.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Push Type Solenoid S-69-38-H Page 1 Made in USA
