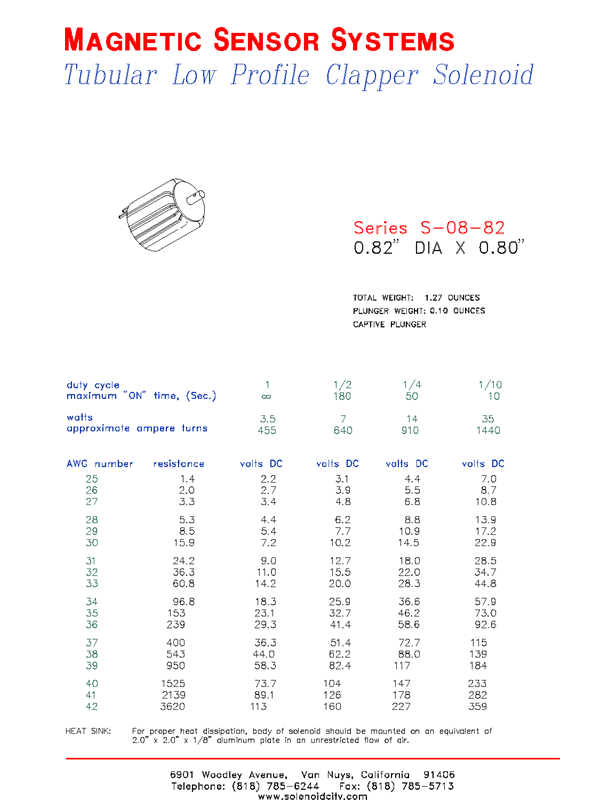

Magnetic Sensor Systems

Tubular Low Profile Clapper Solenoid

Series S-08-82

0.82" DIA X 0.80"

[20.8 mm DIA X 20.3 mm]

TOTAL WEIGHT: 1.27 OUNCES [36.0 GR]

PLUNGER WEIGHT: 0.10 OUNCES [2.8 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	180	50	10
watts	3.5	7	14	35
approximate ampere turns	455	640	910	1440

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
25	1.4	2.2	3.1	4.4	7.0
26	2.0	2.7	3.9	5.5	8.7
27	3.3	3.4	4.8	6.8	10.8
28	5.3	4.4	6.2	8.8	13.9
29	8.5	5.4	7.7	10.9	17.2
30	15.9	7.2	10.2	14.5	22.9
31	24.2	9.0	12.7	18.0	28.5
32	36.3	11.0	15.5	22.0	34.7
33	60.8	14.2	20.0	28.3	44.8
34	96.8	18.3	25.9	36.6	57.9
35	153	23.1	32.7	46.2	73.0
36	239	29.3	41.4	58.6	92.6
37	400	36.3	51.4	72.7	115
38	543	44.0	62.2	88.0	139
39	950	58.3	82.4	117	184
40	1525	73.7	104	147	233
41	2139	89.1	126	178	282
42	3620	113	160	227	359

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 2.0" x 2.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Low Profile Clapper Solenoid S-08-82 Page 1 Made in USA

Tubular Low Profile Clapper Solenoid

25

1.4

2.2

3.1

4.4

7.0

26

2.0

2.7

3.9

5.5

8.7

27

3.3

3.4

4.8

6.8

10.8

28

5.3

4.4

6.2

8.8

13.9

29

8.5

5.4

7.7

10.9

17.2

30

15.9

7.2

10.2

14.5

22.9

31

24.2

9.0

12.7

18.0

28.5

32

36.3

11.0

15.5

22.0

34.7

33

60.8

14.2

20.0

28.3

44.8

34

96.8

18.3

25.9

36.6

57.9

35

153

23.1

32.7

46.2

73.0

36

239

29.3

41.4

58.6

92.6

37

400

36.3

51.4

72.7

115
