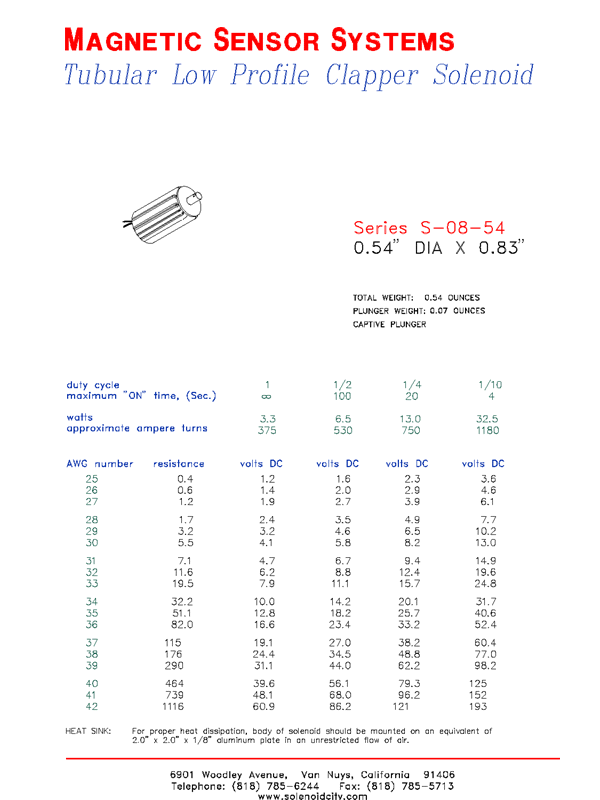

Magnetic Sensor Systems

Tubular Low Profile Clapper Solenoid

Series S-08-54

0.54" DIA X 0.83"

[13.7 mm DIA X 21.1 mm]

TOTAL WEIGHT: 0.54 OUNCES [15.3 GR]

PLUNGER WEIGHT: 0.07 OUNCES [2.0 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	100	20	4
watts	3.3	6.5	13	32.5
approximate ampere turns	375	530	750	1180

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
25	0.4	1.2	1.6	2.3	3.6
26	0.6	1.4	2.0	2.9	4.6
27	1.2	1.9	2.7	3.9	6.1
28	1.7	2.4	3.5	4.9	7.7
29	3.2	3.2	4.6	6.5	10.2
30	5.5	4.1	5.8	8.2	13.0
31	7.1	4.7	6.7	9.4	14.9
32	11.6	6.2	8.8	12.4	19.6
33	19.5	7.9	11.1	15.7	24.8
34	32.2	10.0	14.2	20.1	31.7
35	51.1	12.8	18.2	25.7	40.6
36	82.0	16.6	23.4	33.2	52.4
37	115	19.1	27.0	38.2	60.4
38	176	24.4	34.5	48.8	77.0
39	290	31.1	44.0	62.2	98.2
40	464	39.6	56.1	79.3	125
41	739	48.1	68.0	96.2	152
42	1116	60.9	86.2	121	193

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 2.0" x 2.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Tubular Low Profile Clapper Solenoid S-08-54 Page 1 Made in USA

Tubular Low Profile Clapper Solenoid

25

0.4

1.2

1.6

2.3

3.6

26

0.6

1.4

2.0

2.9

4.6

27

1.2

1.9

2.7

3.9

6.1

28

1.7

2.4

3.5

4.9

7.7

29

3.2

3.2

4.6

6.5

10.2

30

5.5

4.1

5.8

8.2

13.0

31

7.1

4.7

6.7

9.4

14.9

32

11.6

6.2

8.8

12.4

19.6

33

19.5

7.9

11.1

15.7

24.8

34

32.2

10.0

14.2

20.1

31.7

35

51.1

12.8

18.2

25.7

40.6

36

82.0

16.6

23.4

33.2

52.4

37

115

19.1

27.0

38.2

60.4
