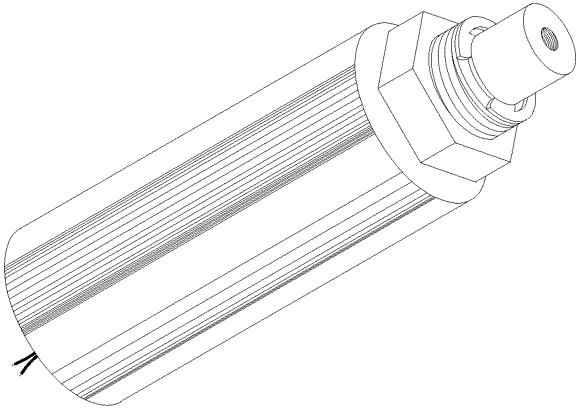

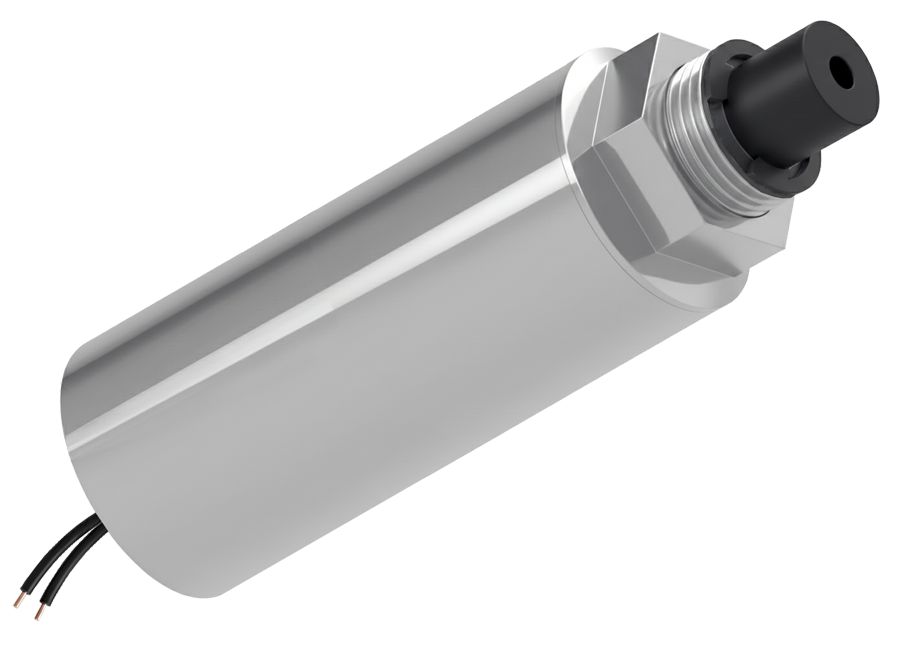

Pull Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

1700

580

190

watts

35

70

140

350

approximate ampere turns

4400

6200

8800

13900

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

17

3.8

11.7

16.5

23.4

37.0

18

6.5

15.1

21.3

30.2

47.8

19

10.4

19.0

26.8

38.0

60.1

20

17.6

24.5

34.6

49.1

77.5

21

28.3

31.1

43.8

62.1

98.1

22

45.2

39.3

55.4

78.6

124

23

68.2

48.7

68.6

97.4

154

24

109

61.4

86.5

123

194

25

179

79.3

112

159

251

26

279

98.6

139

197

311

27

469

126

177

252

398

28

701

158

223

316

499

29

1100

200

282

400

632

30

1644

246

347

492

31

2893

320

451

640

32

4220

393

554

33

6900

498

34

10880

625

S-70-300 Tubular Solenoid Features and Applications

Key Features

3.0 in (76.2 mm) diameter body; 7.00 in (177.8 mm) body length; published duty-cycle and DC winding options.

Typical Applications

The S-70-300 may be considered for latches, release mechanisms, laboratory equipment, dispensing systems, valves and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

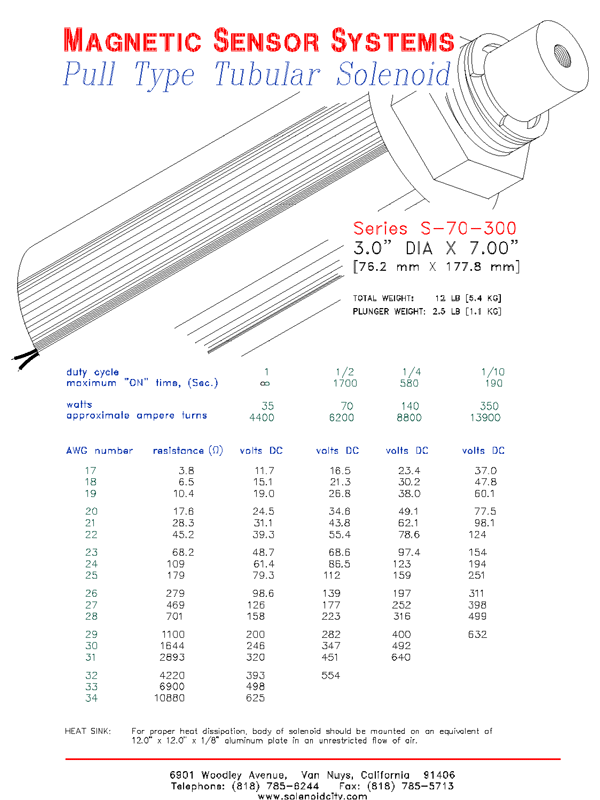

For mechanical details and performance information, see the additional S-70-300 data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
