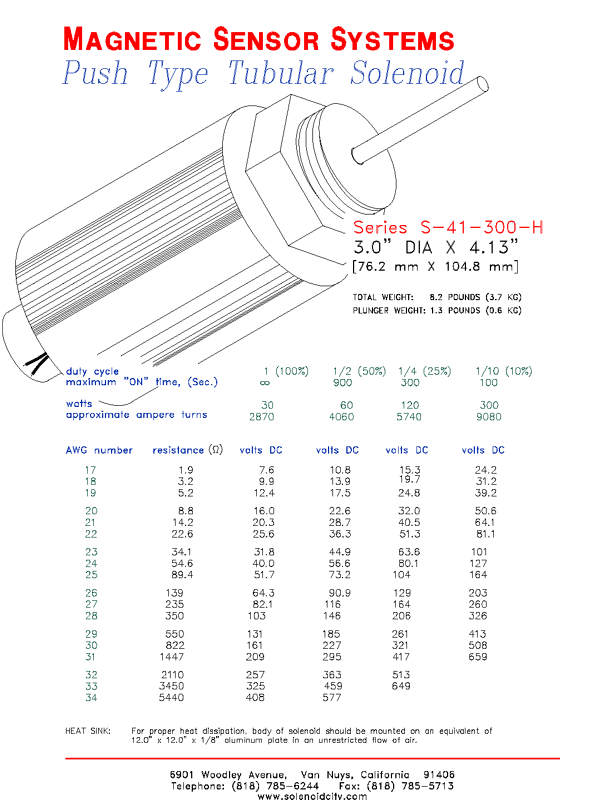

Push Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

900

300

100

watts

30

60

120

300

approximate ampere turns

2870

4060

5740

9080

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

17

1.9

7.6

10.8

15.3

24.2

18

3.2

9.9

13.9

19.7

31.2

19

5.2

12.4

17.5

24.8

39.2

20

8.8

16.0

22.6

32.0

50.6

21

14.2

20.3

28.7

40.5

64.1

22

22.6

25.6

36.3

51.3

81.1

23

34.1

31.8

44.9

63.6

101

24

54.6

40.0

56.6

80.1

127

25

89.4

51.7

73.2

104

164

26

139

64.3

90.9

129

203

27

235

82.1

116

164

260

28

350

103

146

206

326

29

550

131

185

261

413

30

822

161

227

321

508

31

1447

209

295

417

659

32

2110

257

363

513

33

3450

325

459

649

34

5440

408

577

S-41-300-H Tubular Solenoid Features and Applications

Key Features

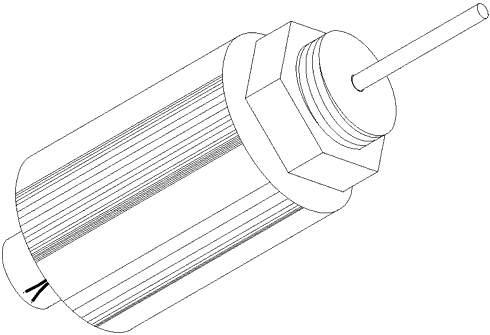

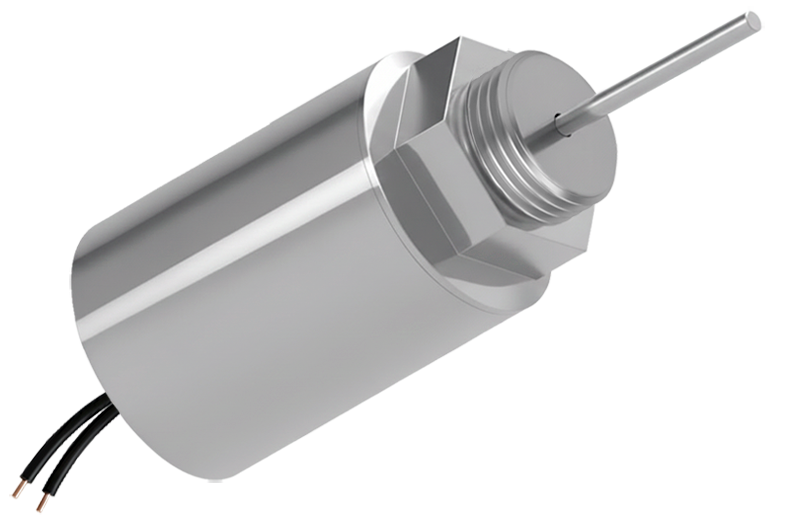

3.0 in (76.2 mm) diameter body; 4.13 in (104.8 mm) body length; published duty-cycle and DC winding options.

Typical Applications

The S-41-300-H may be considered for indexing pins, ejectors, dispensing mechanisms, automated fixtures, sorting equipment and other short-stroke push-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-41-300-H data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
