Pull Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

840

270

90

watts

18

36

72

180

approximate ampere turns

2400

3400

4800

7600

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

18

1.5

5.1

7.3

10.3

16.2

19

2.4

6.4

9.1

12.9

20.4

20

3.7

8.0

11.4

16.0

25.4

21

5.8

10.2

14.5

20.4

32.3

22

9.3

12.8

18.2

25.7

40.6

23

15

16.3

23.1

32.7

51.7

24

24.3

20.6

29.1

41.1

65.1

25

38.1

26.2

37.2

52.5

83.0

26

60.7

33.0

46.8

66.0

105

27

94.7

40.9

58.0

81.9

130

28

155

53.2

75.4

106

168

29

238

65.9

93.3

132

209

30

398

84.5

120

169

268

31

625

106

151

213

337

32

965

132

187

264

418

33

1595

171

242

342

541

34

2725

223

315

445

35

4229

278

393

555

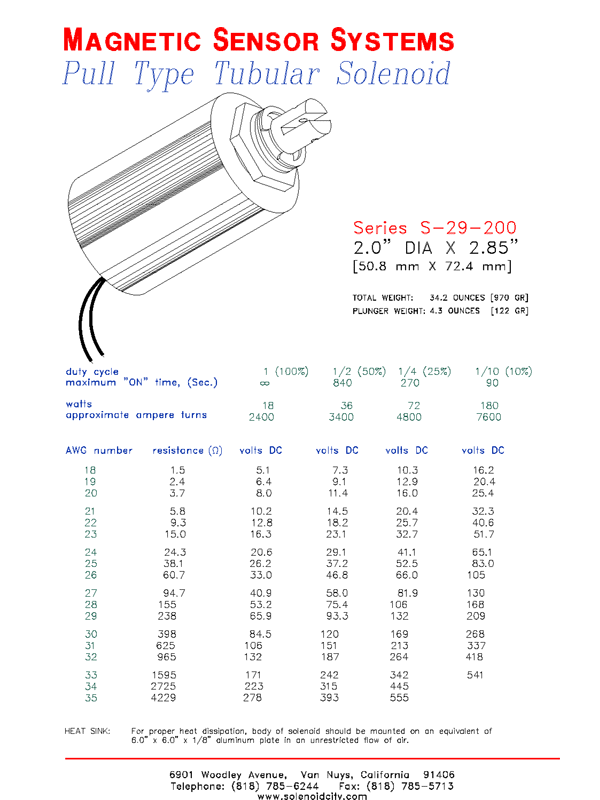

S-29-200 Tubular Solenoid Features and Applications

Key Features

2.0 in (50.8 mm) diameter body; 2.85 in (72.4 mm) body length; 34.2 oz (970 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-29-200 may be considered for latches, release mechanisms, laboratory equipment, dispensing systems, valves and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-29-200 data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
