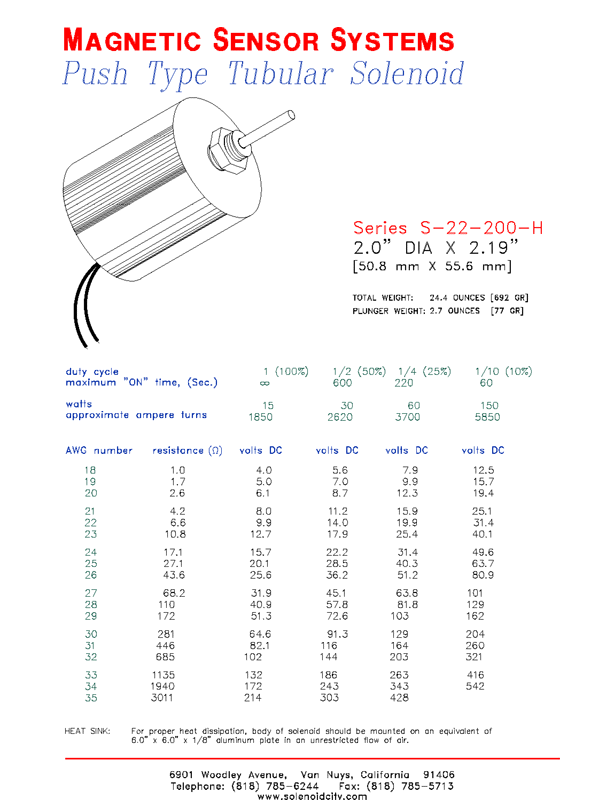

Push Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

600

220

60

watts

15

30

60

150

approximate ampere turns

1850

2620

3700

5850

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

18

1.0

4.0

5.6

7.9

12.5

19

1.7

5.0

7.0

9.9

15.7

20

2.6

6.1

8.7

12.3

19.4

21

4.2

8.0

11.2

15.9

25.1

22

6.6

9.9

14.0

19.9

31.4

23

10.8

12.7

17.9

25.4

40.1

24

17.1

15.7

22.2

31.4

49.6

25

27.1

20.1

28.5

40.3

63.7

26

43.6

25.6

36.2

51.2

80.9

27

68.2

31.9

45.1

63.8

101

28

110

40.9

57.8

81.8

129

29

172

51.3

72.6

103

162

30

281

64.6

91.3

129

204

31

446

82.1

116

164

260

32

685

102

144

203

321

33

1135

132

186

263

416

34

1940

172

243

343

542

35

3011

214

303

428

S-22-200-H Tubular Solenoid Features and Applications

Key Features

2.0 in (50.8 mm) diameter body; 2.13 in (55.6 mm) body length; 24.4 oz (692 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-22-200-H may be considered for indexing pins, ejectors, dispensing mechanisms, automated fixtures, sorting equipment and other short-stroke push-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-22-200-H data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
