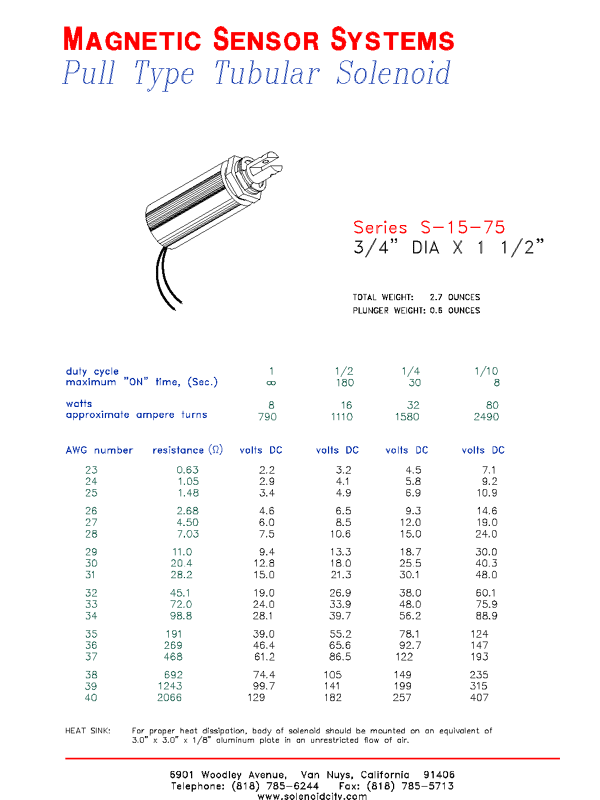

Pull Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

180

30

8

watts

8

16

32

80

approximate ampere turns

790

1110

1580

2490

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

23

0.63

2.2

3.2

4.5

7.1

24

1.05

2.9

4.1

5.8

9.2

25

1.48

3.4

4.9

6.9

10.9

26

2.68

4.6

6.5

9.3

14.6

27

4.50

6.0

8.5

12.0

19.0

28

7.03

7.5

10.6

15.0

24.0

29

11.0

9.4

13.3

18.7

30.0

30

20.4

12.8

18.0

25.5

40.3

31

28.2

15.0

21.3

30.1

48.0

32

45.1

19.0

26.9

38.0

60.1

33

72.0

24.0

33.9

48.0

75.9

34

98.8

28.1

39.7

56.2

88.9

35

191

39.0

55.2

78.1

124

36

269

46.4

65.6

92.7

147

37

468

61.2

86.5

122

193

38

692

74.4

105

149

235

39

1243

99.7

141

199

315

40

2066

129

182

257

407

S-15-75 Tubular Solenoid Features and Applications

Key Features

0.75 in (19.1 mm) diameter body; 1.50 in (38.1 mm) body length; 2.7 oz (77 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-15-75 may be considered for latches, release mechanisms, laboratory equipment, dispensing systems, valves and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-15-75 data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
