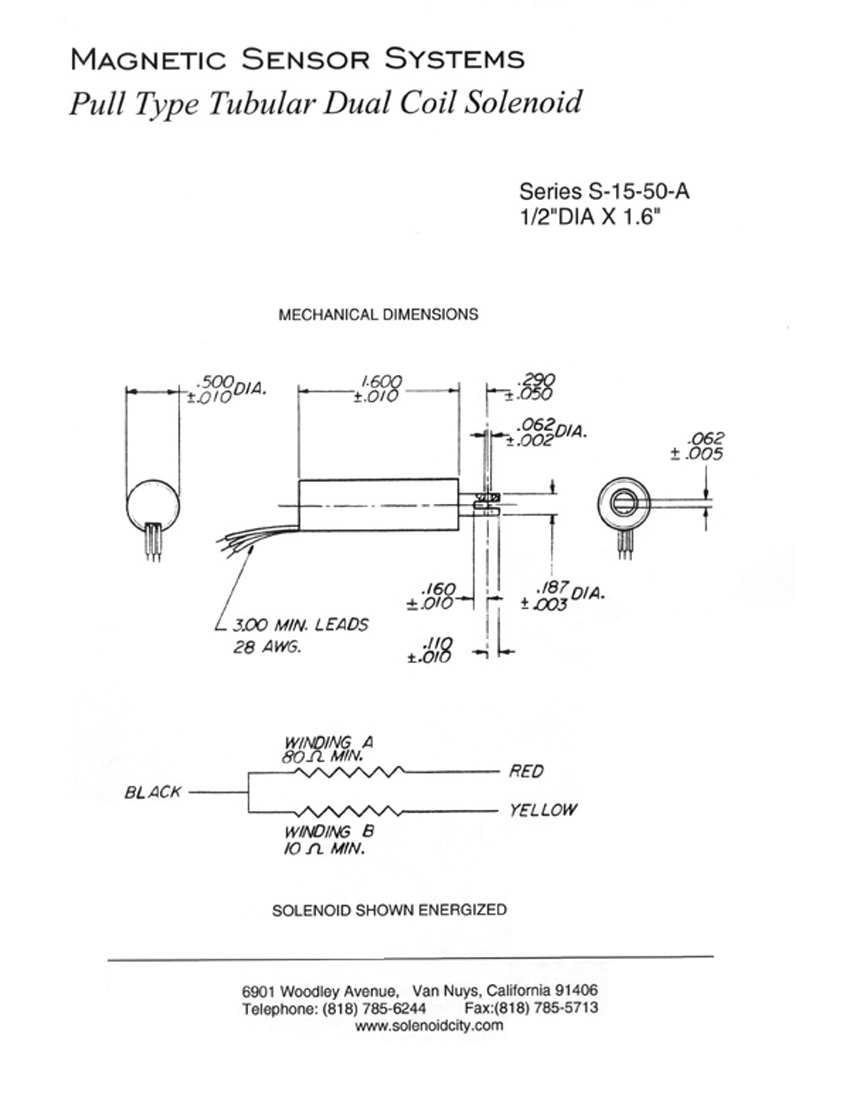

Tubular Pull Type Solenoid     S-15-50-A            Page 1              Made in USA

S-15-50-A Tubular Solenoid Features and Applications

Key Features

0.50 in (12.7 mm) diameter body; 1.60 in (40.6 mm) body length; dual-coil pull-actuation design; published duty-cycle and DC winding options.

Typical Applications

The S-15-50-A may be considered for latches, release mechanisms, access-control equipment and other systems that benefit from a compact dual-coil pull actuator. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-15-50-A data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
