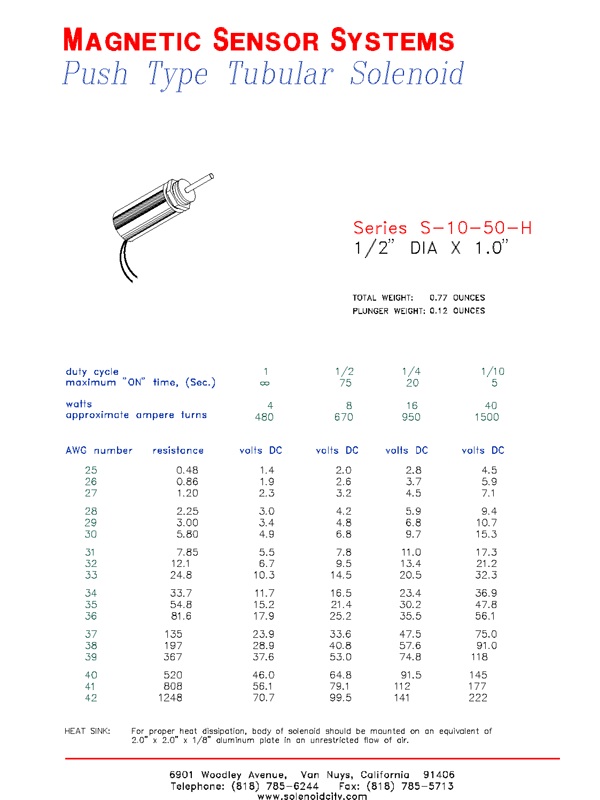

Push Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

75

20

5

watts

4

8

16

40

approximate ampere turns

480

670

950

1500

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

25

0.48

1.4

2.0

2.8

4.5

26

0.86

1.9

2.6

3.7

5.9

27

1.20

2.3

3.2

4.5

7.1

28

2.25

3.0

4.2

5.9

9.4

29

3.00

3.4

4.8

6.8

10.7

30

5.80

4.9

6.8

9.7

15.3

31

7.85

5.5

7.8

11.0

17.3

32

12.1

6.7

9.5

13.4

21.2

33

24.8

10.3

14.5

20.5

32.3

34

33.7

11.7

16.5

23.4

36.9

35

54.8

15.2

21.4

30.2

47.8

36

81.6

17.9

25.2

35.5

56.1

37

135

23.9

33.6

47.5

75.0

38

197

28.9

40.8

57.6

91.0

39

367

37.6

53.0

74.8

118

40

520

46.0

64.8

91.5

145

41

808

56.1

79.1

112

177

42

1248

70.7

99.5

141

222

S-10-50-H Tubular Solenoid Features and Applications

Key Features

0.50 in (12.7 mm) diameter body; 1.00 in (25.4 mm) body length; 0.77 oz (21.9 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-10-50-H may be considered for indexing pins, ejectors, dispensing mechanisms, automated fixtures, sorting equipment and other short-stroke push-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-10-50-H data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
