Magnetic Sensor Systems

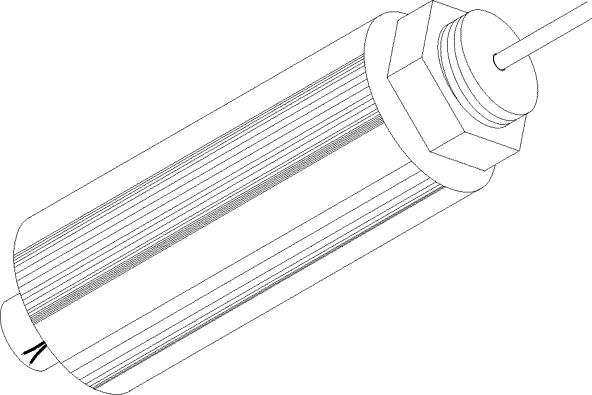

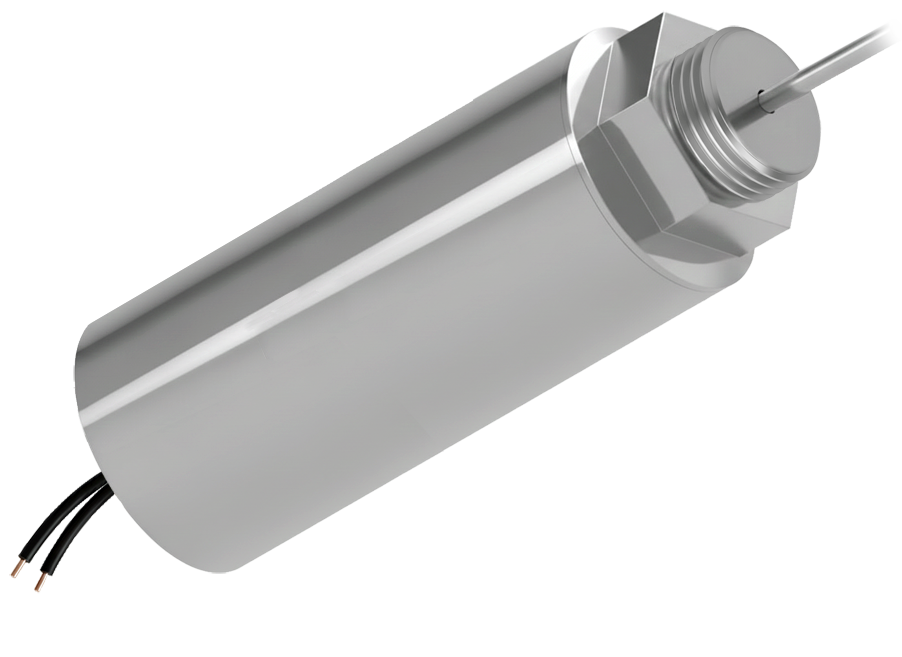

Push Type Tubular Solenoid

Series S-70-300-H

3.0" DIA X 7.00"

[76.2 mm DIA X 177.8 mm]

TOTAL WEIGHT: 12.1 LB [5.5 KG]

PLUNGER WEIGHT: 2.2 LB [1.0 KG]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	1700	580	190
watts	35	70	140	350
approximate ampere turns	4400	6200	8800	13900

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
17	3.8	11.7	16.5	23.4	37.0
18	6.5	15.1	21.3	30.2	47.8
19	10.4	19.0	26.8	38.0	60.1
20	17.6	24.5	34.6	49.1	77.5
21	28.3	31.1	43.8	62.1	98.1
22	45.2	39.3	55.4	78.6	124
23	68.2	48.7	68.6	97.4	154
24	109	61.4	86.5	123	194
25	179	79.3	112	159	251
26	279	98.6	139	197	311
27	469	126	177	252	398
28	701	158	223	316	499
29	1100	200	282	400	632
30	1644	246	347	492
31	2893	320	451	640
32	4220	393	554
33	6900	498
34	10880	625

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 12.0" x 12.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

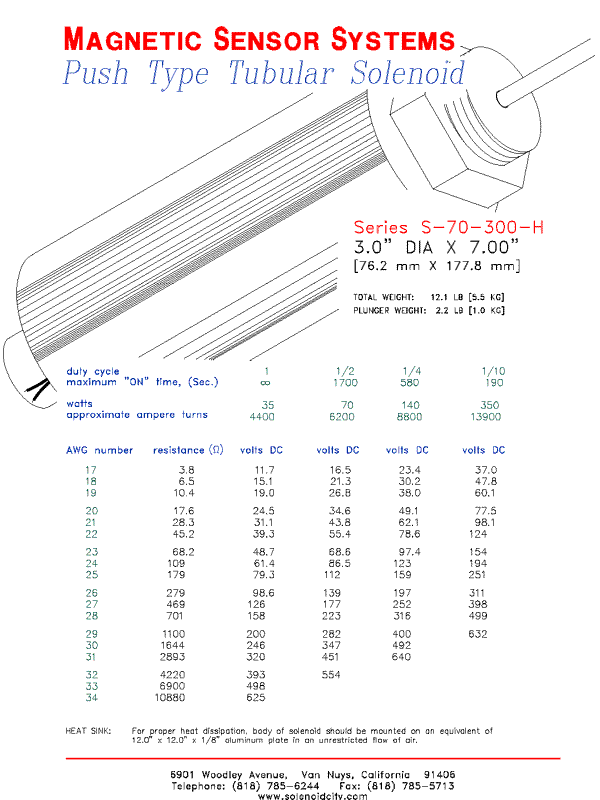

Tubular Push Type Solenoid S-70-300-H Page 1 Made in USA
