Magnetic Sensor Systems

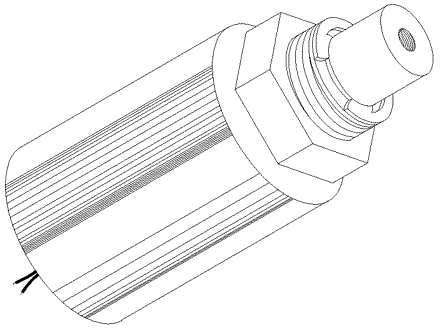

Pull Type Tubular Solenoid

Series S-41-300

3.0" DIA X 4.13"

[76.2 mm DIA X 104.8 mm]

TOTAL WEIGHT: 7.9 LB [3.6 KG]

PLUNGER WEIGHT: 1.6 LB [0.7 KG]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	900	300	100
watts	30	60	120	300
approximate ampere turns	2870	4060	5740	9080

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
17	1.9	7.6	10.8	15.3	24.2
18	3.2	9.9	13.9	19.7	31.2
19	5.2	12.4	17.5	24.8	39.2
20	8.8	16.0	22.6	32.0	50.6
21	14.2	20.3	28.7	40.5	64.1
22	22.6	25.6	36.3	51.3	81.1
23	34.1	31.8	44.9	63.6	101
24	54.6	40.0	56.6	80.1	127
25	89.4	51.7	73.2	104	164
26	139	64.3	90.9	129	203
27	235	82.1	116	164	260
28	350	103	146	206	326
29	550	131	185	261	413
30	822	161	227	321	508
31	1447	209	295	417	659
32	2110	257	363	513
33	3450	325	459	649
34	5440	408	577

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 12.0" x 12.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

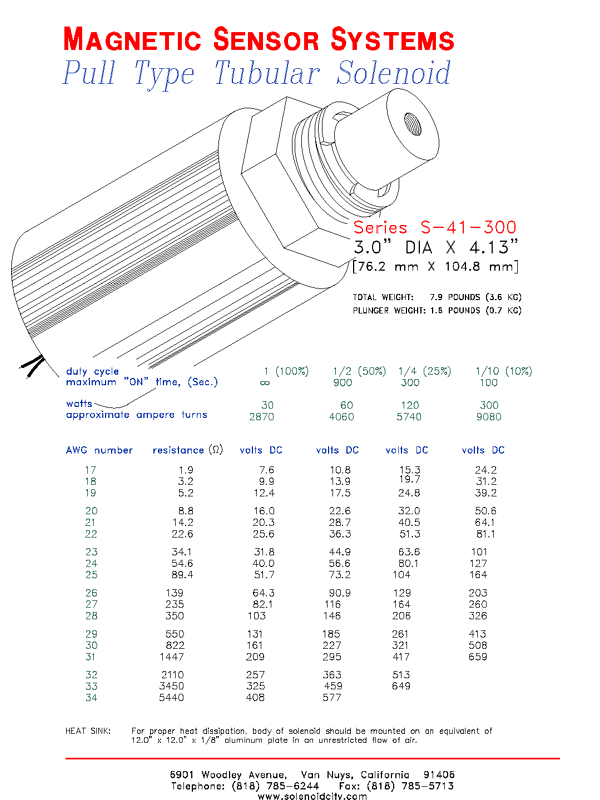

Tubular Pull Type Solenoid S-41-300 Page 1 Made in USA

Pull Type Tubular Solenoid

17

1.9

7.6

10.8

15.3

24.2

18

3.2

9.9

13.9

19.7

31.2

19

5.2

12.4

17.5

24.8

39.2

20

8.8

16.0

22.6

32.0

50.6

21

14.2

20.3

28.7

40.5

64.1

22

22.6

25.6

36.3

51.3

81.1

23

34.1

31.8

44.9

63.6

101

24

54.6

40.0

56.6

80.1

127

25

89.4

51.7

73.2

104

164

26

139

64.3

90.9

129

203

27

235

82.1

116

164

260

28

350

103

146

206

326

29

550

131

185

261

413
