Magnetic Sensor Systems

Rotary Solenoid
Clockwise - Forward Shaft Extension

Series R-09-150-CWM

1.500" DIA X 0.87"

[38.1 mm DIA X 22.1 mm]

TOTAL WEIGHT: 5.0 OUNCES [142 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	300	60	12
watts	9	18	36	90
approximate ampere turns	370	520	730	1160

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	0.15	1.1	1.6	2.3	3.6
21	0.19	1.3	1.9	2.6	4.2
22	0.41	1.9	2.7	3.8	5.9
23	0.54	2.3	3.2	4.5	7.2
24	1.0	3.1	4.4	6.2	9.8
25	1.7	4.0	5.6	7.9	12.6
26	2.4	4.7	6.7	9.4	14.9
27	4.4	6.3	8.9	12.6	19.9
28	6.8	8.0	11.4	16.1	25.4
29	11.5	10.0	14.1	19.9	31.5
30	20.2	12.9	18.2	25.7	40.7
31	27.0	15.9	22.5	31.8	50.2
32	44.0	19.5	27.6	39.0	61.8
33	71.0	25.0	35.4	50.0	79.1
34	117	32.4	45.9	64.9	103
35	188	41.7	59.0	83.4	132
36	295	51.4	72.8	103	163
37	437	60.8	86.1	122	192

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

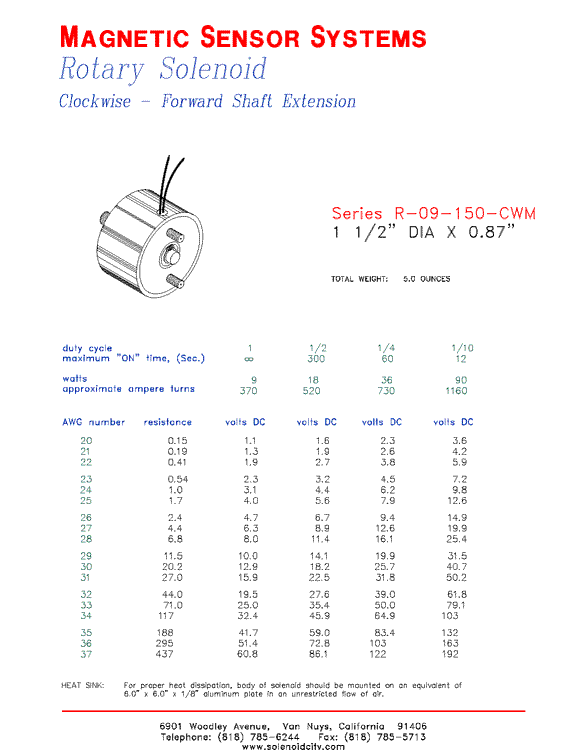

Rotary Solenoid R-09-150-CWM Page 1 Made in USA
