Pull Type Tubular Solenoid

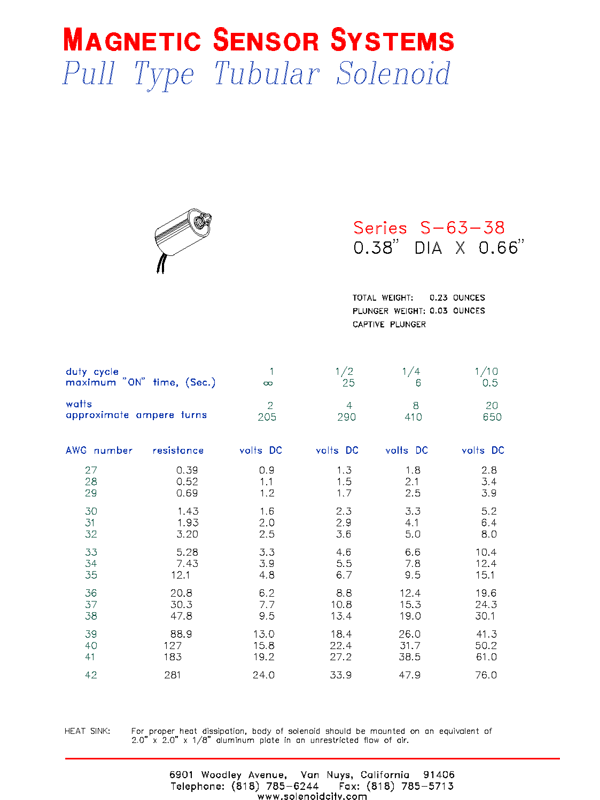

The S-63-38 miniature tubular pull solenoid is a compact linear electromagnetic actuator measuring 0.375 in (9.7 mm) in diameter and 0.66 in (16.8 mm) in length. This page provides duty-cycle, power, ampere-turn, coil-resistance and DC-voltage data for selecting the appropriate winding and operating condition.

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

25

6

0.5

watts

2

4

8

20

approximate ampere turns

205

290

410

650

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

27

0.39

0.9

1.3

1.8

2.8

28

0.52

1.1

1.5

2.1

3.4

29

0.69

1.2

1.7

2.5

3.9

30

1.43

1.6

2.3

3.3

5.2

31

1.93

2.0

2.9

4.1

6.4

32

3.20

2.5

3.6

5.0

8.0

33

5.28

3.3

4.6

6.6

10.4

34

7.43

3.9

5.5

7.8

12.4

35

12.1

4.8

6.7

9.5

15.1

36

20.8

6.2

8.8

12.4

19.6

37

30.3

7.7

10.8

15.3

24.3

38

47.8

9.5

13.4

19.0

30.1

39

88.9

13.0

18.4

26.0

41.3

40

127

15.8

22.4

31.7

50.2

41

183

19.2

27.2

38.5

61.0

42

281

24.0

33.9

47.9

76.0

S-63-38 Tubular Solenoid Features and Applications

Key Features

Compact 0.375 in (9.7 mm) diameter body; 0.66 in (16.8 mm) length; low 0.23 oz (6.5 g) total weight; four duty-cycle ratings; and multiple coil windings for a broad range of DC operating voltages.

Typical Applications

The S-63-38 may be considered for compact latches, release mechanisms, laboratory equipment, small dispensing systems, office equipment and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see additional S-63-38 data, download the PDF datasheet, or use the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
