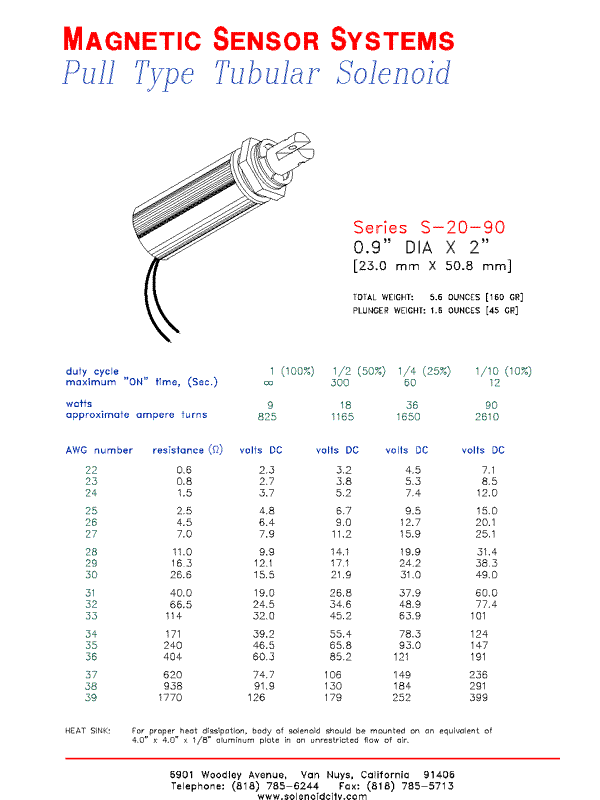

Pull Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

300

60

12

watts

9

18

36

90

approximate ampere turns

825

1165

1650

2610

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

22

0.6

2.3

3.2

4.5

7.1

23

0.8

2.7

3.8

5.3

8.5

24

1.5

3.7

5.2

7.4

12.0

25

2.5

4.8

6.7

9.5

15.0

26

4.5

6.4

9.0

12.7

20.1

27

7.0

7.9

11.2

15.9

25.1

28

11.0

9.9

14.1

19.9

31.4

29

16.3

12.1

17.1

24.2

38.3

30

26.6

15.5

21.9

31.0

49.0

31

40.0

19.0

26.8

37.9

60.0

32

66.5

24.5

34.6

48.9

77.4

33

114

32.0

45.2

63.9

101

34

171

39.2

55.4

78.3

124

35

240

46.5

65.8

93.0

147

36

404

60.3

85.2

121

191

37

620

74.7

106

149

236

38

938

91.9

130

184

291

39

1770

126

179

252

399

S-20-90 Tubular Solenoid Features and Applications

Key Features

0.90 in (23.0 mm) diameter body; 2.00 in (50.8 mm) body length; 5.6 oz (160 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-20-90 may be considered for latches, release mechanisms, laboratory equipment, dispensing systems, valves and other short-stroke pull-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-20-90 data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
