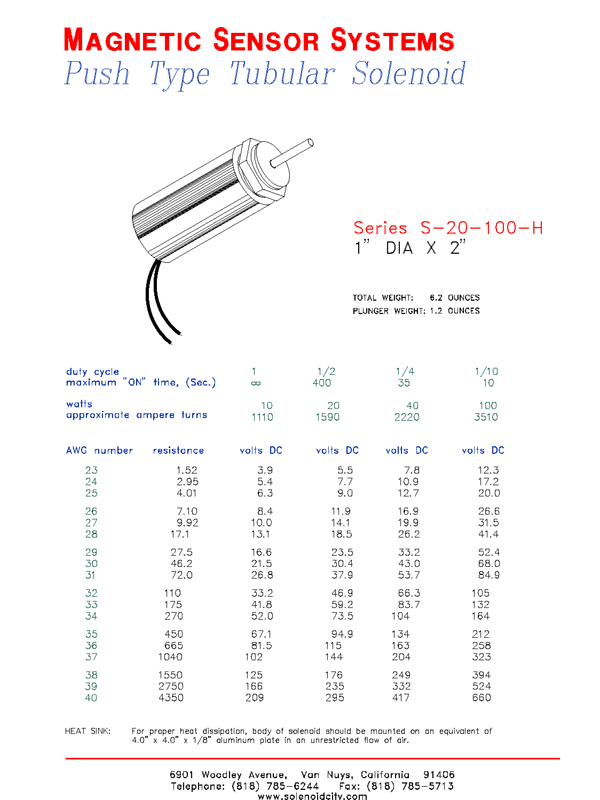

Push Type Tubular Solenoid

duty cycle

1 (100%)

1/2 (50%)

1/4 (25%)

1/10 (10%)

maximum "ON” time, (Sec.)

infinite (∞ )

400

35

10

watts

10

20

40

100

approximate ampere turns

1110

1590

2220

3510

coil wire size (AWG)

coil resistance (Ω)

volts DC

volts DC

volts DC

volts DC

23

1.52

3.9

5.5

7.8

12.3

24

2.95

5.4

7.7

10.9

17.2

25

4.01

6.3

9.0

12.7

20.0

26

7.10

8.4

11.9

16.9

26.6

27

9.92

10.0

14.1

19.9

31.5

28

17.1

13.1

18.5

26.2

41.4

29

27.5

16.6

23.5

33.2

52.4

30

46.2

21.5

30.4

43.0

68.0

31

72.0

26.8

37.9

53.7

84.9

32

110

33.2

46.9

66.3

105

33

175

41.8

59.2

83.7

132

34

270

52.0

73.5

104

164

35

450

67.1

94.9

134

212

36

665

81.5

115

163

258

37

1040

102

144

204

323

38

1550

125

176

249

394

39

2750

166

235

332

524

40

4350

209

295

417

660

S-20-100-H Tubular Solenoid Features and Applications

Key Features

1.00 in (25.5 mm) diameter body; 2.00 in (50.8 mm) body length; 6.2 oz (176 g) total weight; published duty-cycle and DC winding options.

Typical Applications

The S-20-100-H may be considered for indexing pins, ejectors, dispensing mechanisms, automated fixtures, sorting equipment and other short-stroke push-actuation assemblies. Verify force, stroke, duty cycle, heat sinking and environmental requirements for the final design.

For mechanical details and performance information, see the additional S-20-100-H data, PDF datasheet, or the 3D STEP model. For application assistance, contact Magnetic Sensor Systems.
