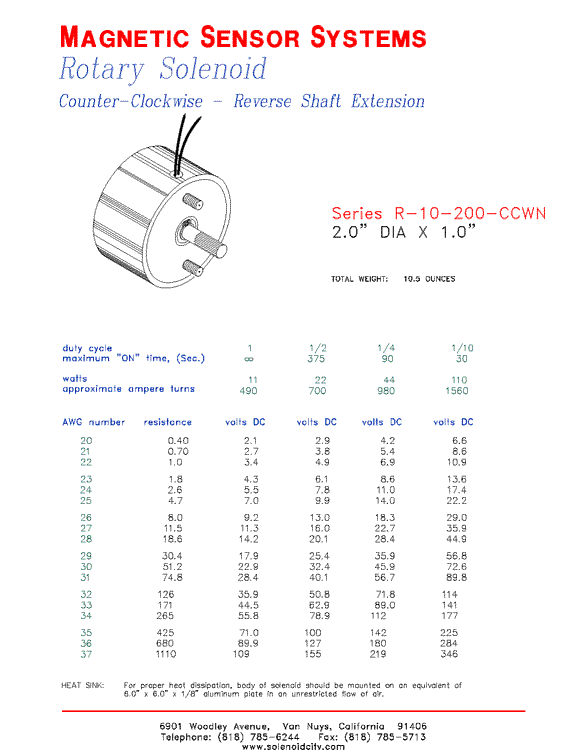

Magnetic Sensor Systems

Rotary Solenoid
Counter-Clockwise - Reverse Shaft Extension

Series R-10-200-CCWN

2.000" DIA X 1.00"

[50.8 mm DIA X 25.4 mm]

TOTAL WEIGHT: 10.5 OUNCES [298 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	375	90	30
watts	11	22	44	110
approximate ampere turns	490	700	980	1560

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	0.40	2.1	2.9	4.2	6.6
21	0.70	2.7	3.8	5.4	8.6
22	1.0	3.4	4.9	6.9	10.9
23	1.8	4.3	6.1	8.6	13.6
24	2.6	5.5	7.8	11.0	17.4
25	4.7	7.0	9.9	14.0	22.2
26	8.0	9.2	13.0	18.3	29.0
27	11.5	11.3	16.0	22.7	35.9
28	18.6	14.2	20.1	28.4	44.9
29	30.4	17.9	25.4	35.9	56.8
30	51.2	22.9	32.4	45.9	72.6
31	74.8	28.4	40.1	56.7	89.8
32	126	35.9	50.8	71.8	114
33	171	44.5	62.9	89.0	141
34	265	55.8	78.9	112	177
35	425	71.0	100	142	225
36	680	89.9	127	180	284
37	1110	109	155	219	346

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Rotary Solenoid R-10-200-CCWN Page 1 Made in USA

Rotary Solenoid Counter-Clockwise - Reverse Shaft Extension
