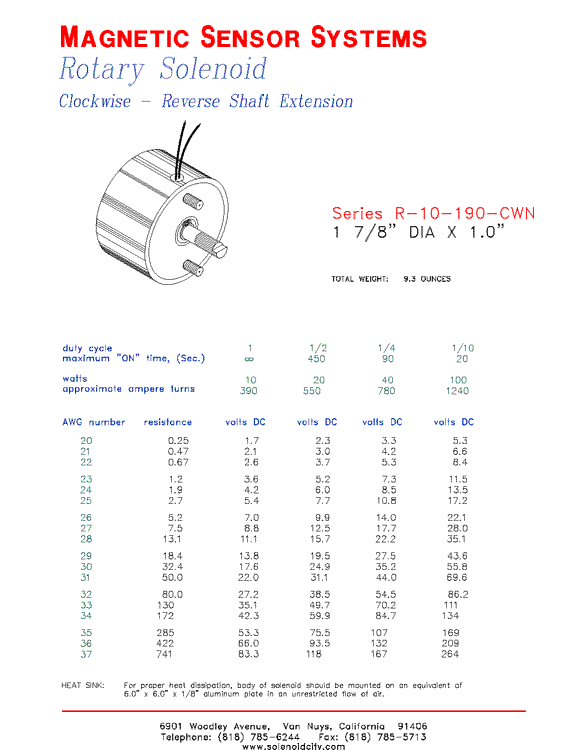

Magnetic Sensor Systems

Rotary Solenoid
Clockwise - Reverse Shaft Extension

Series R-10-190-CWN

1.875" DIA X 1.00"

[47.6 mm DIA X 25.4 mm]

TOTAL WEIGHT: 9.3 OUNCES [264 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	450	90	20
watts	10	20	40	100
approximate ampere turns	390	550	780	1240

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
20	0.25	1.7	2.3	3.3	5.3
21	0.47	2.1	3.0	4.2	6.6
22	0.67	2.6	3.7	5.3	8.4
23	1.2	3.6	5.2	7.3	11.5
24	1.9	4.2	6.0	8.5	13.5
25	2.7	5.4	7.7	10.8	17.2
26	5.2	7.0	9.9	14.0	22.1
27	7.5	8.8	12.5	17.7	28.0
28	13.1	11.1	15.7	22.2	35.1
29	18.4	13.8	19.5	27.5	43.6
30	32.4	17.6	24.9	35.2	55.8
31	50.0	22.0	31.1	44.0	69.6
32	80.0	27.2	38.5	54.5	86.2
33	130	35.1	49.7	70.2	111
34	172	42.3	59.9	84.7	134
35	285	53.3	75.5	107	169
36	422	66.0	93.5	132	209
37	741	83.3	118	167	264

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 6.0" x 6.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Rotary Solenoid R-10-190-CWN Page 1 Made in USA

Rotary Solenoid Clockwise - Reverse Shaft Extension

20

0.25

1.7

2.3

3.3

5.3

21

0.47

2.1

3.0

4.2

6.6

22

0.67

2.6

3.7

5.3

8.4

23

1.2

3.6

5.2

7.3

11.5

24

1.9

4.2

6.0

8.5

13.5

25

2.7

5.4

7.7

10.8

17.2

26

5.2

7.0

9.9

14.0

22.1

27

7.5

8.8

12.5

17.7

28.0

28

13.1

11.1

15.7

22.2

35.1

29

18.4

13.8

19.5

27.5

43.6

30

32.4

17.6

24.9

35.2

55.8

31

50.0

22.0

31.1

44.0

69.6

32

80.0

27.2

38.5

54.5

86.2

Rotary Solenoid
Clockwise - Reverse Shaft Extension
