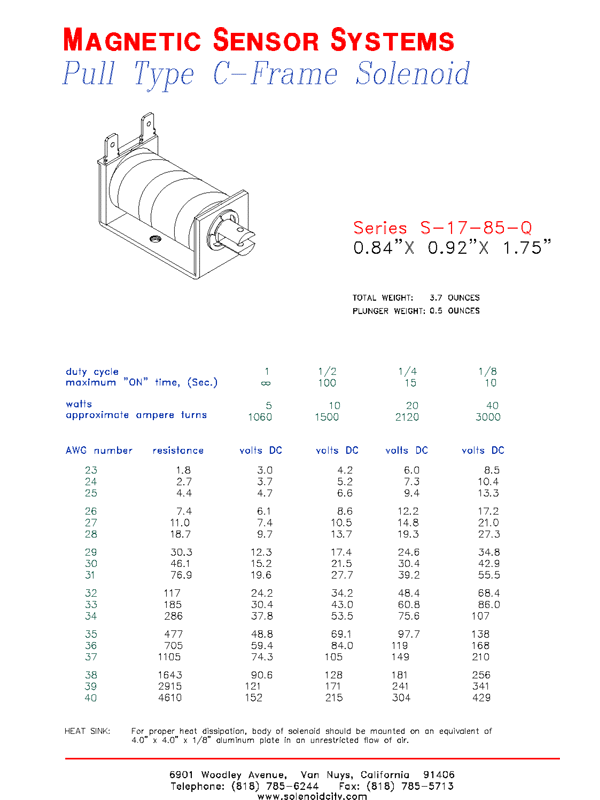

Magnetic Sensor Systems

Pull Type Open C-Frame Solenoid

Series S-17-85-Q

0.84" X 0.92" X 1.75"

[21.3 mm X 23.4 mm X 44.5 mm]

TOTAL WEIGHT: 3.7 OUNCES [105 GR]

PLUNGER WEIGHT: 0.5 OUNCES [14.2 GR]

duty cycle	1 (100%)	1/2 (50%)	1/4 (25%)	1/10 (10%)
maximum "ON” time, (Sec.)	infinite (∞ )	100	15	10
watts	5	10	20	40
approximate ampere turns	1060	1500	2120	3000

coil wire size (AWG)	coil resistance (Ω)	volts DC	volts DC	volts DC	volts DC
23	1.8	3.0	4.2	6.0	8.5
24	2.7	3.7	5.2	7.3	10.4
25	4.4	4.7	6.6	9.4	13.3
26	7.4	6.1	8.6	12.2	17.2
27	11.0	7.4	10.5	14.8	21.0
28	18.7	9.7	13.7	19.3	27.3
29	30.3	12.3	17.4	24.6	34.8
30	46.1	15.2	21.5	30.4	42.9
31	76.9	19.6	27.7	39.2	55.5
32	117	24.2	34.2	48.4	68.4
33	185	30.4	43.0	60.8	86.0
34	286	37.8	53.5	75.6	107
35	477	48.8	69.1	97.7	138
36	705	59.4	84.0	119	168
37	1105	74.3	105	149	210
38	1643	90.6	128	181	256
39	2915	121	171	241	341
40	4610	152	215	304	429

HEAT SINK: For proper heat dissipation, body of solenoid should be mounted on an equivalent of 4.0" x 4.0" x 1/8" aluminum plate in an unrestricted flow of air.

6901 Woodley Avenue, Van Nuys, California 91406 USA
Telephone: +1-818-785-6244 Fax: +1-818-785-5713 www.solenoidcity.com

Open Frame Pull Type Solenoid S-17-85-Q Page 1 Made in USA
