Pick & Drop Timer Driver Module
PDM950

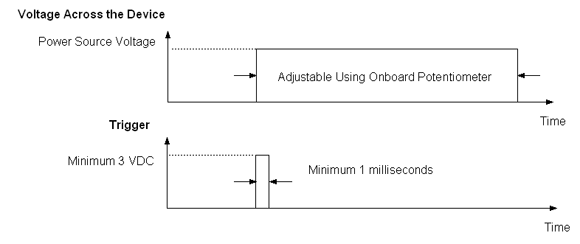

The Pick and Drop Timer Driver Module; PDM950, applies a single pulse to the solenoid or electromagnet, then drops the supply voltage to zero.

This is done by applying a signal to the trigger input of the module.

The trigger voltage could be a TTL / CMOS compatible signal or any voltage between 2.5 VDC and the DC power source supply voltage .

The pick time is set using an onboard potentiometer and can be adjusted between 2 milliseconds and one minute.

Parameter

Min

Typical

Max

Units

Supply Input Voltage (Vcc)

9



50

VDC

Peak Current





15

A

RMS Current *



4



A

Command (Trigger) Range

2.5



Vcc

VDC

Operating Temperature

0



50

Deg C

Storage Temperature

-40



125

Deg C
