On-Off Power Cycling Module - Adjustable Duty
OPC955

The Load On-Off Cycler is designed to enable the user to cycle the voltage across a solenoid or other devices.

The frequency of the actuation is controlled using an onboard trim potentiometer.

The output voltage to the device may also be adjusted using an onboard trim potentiometer.

The range of the frequency is from 0.12 through 30 cycles per second.

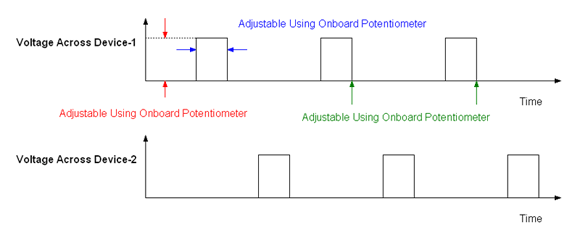

The duty cycle of the actuation (ratio of on time to the length of one full cycle) may also be adjusted using a third onboard trim potentiometer.

It is possible to run multiple modules using a master board signal generator.

Parameter

Min

Typical

Max

Units

Supply Input Voltage

9



50

VDC

Peak Current





15

A

Average (RMS) Current





4

A

Cycling Frequency

0.12



30

Hz

Operating Temperature

0



50

Deg C

Storage Temperature

-40



125

Deg C

PWM Frequency



2



KHz
